VP-08/12/15/20 Variable capacity vane oil pump & gear oil pump

This series of oil pumps makes little noise during operation, runs smoothly, and is wear-resistant. It is suitable for use on machine tools and special machines.
Small temperature rise, small horsepower loss, built-in automatic pressure compensation design.
Availability:
Quantity:
Inquire Add to Basket


VP-08/12/15/20

This series of oil pumps makes little noise during operation, runs smoothly, and is wear-resistant. It is suitable for use on machine tools and special machines.

Small temperature rise, small horsepower loss, built-in automatic pressure compensation design.

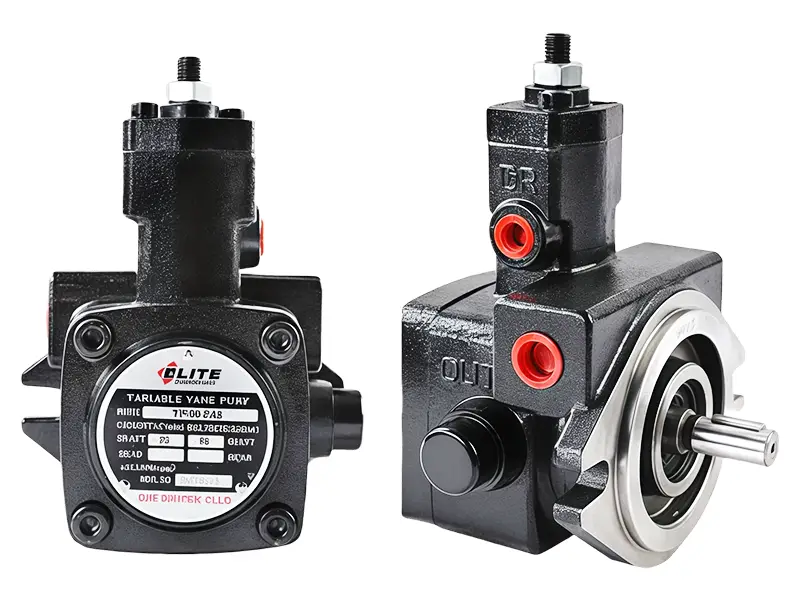

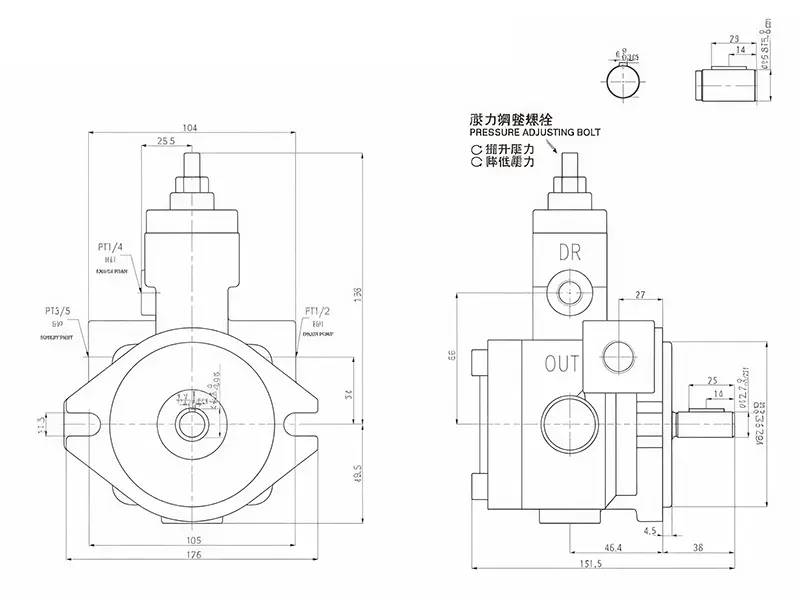

Picture 1.png

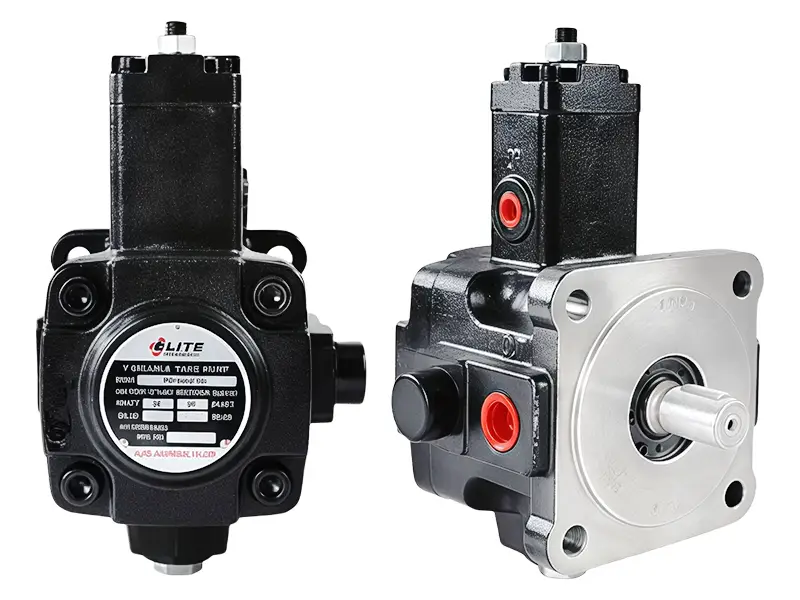

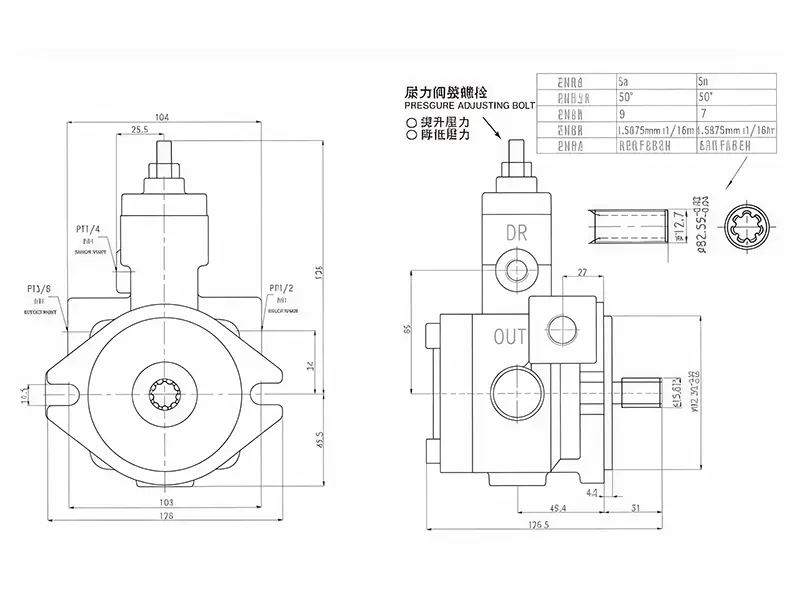

Picture 2.png

Specification parameter table

model

Discharge capacity (1800rpm) (L/min)

Pressure adjustment range (bar)

Rated speed(rpm)

maximum

smallest

VP-08

8

3~70

1800

800

VP-12

12

3~70

1800

800

VP-15

15

3~70

1800

800

VP-20

20

3~70

1800

800

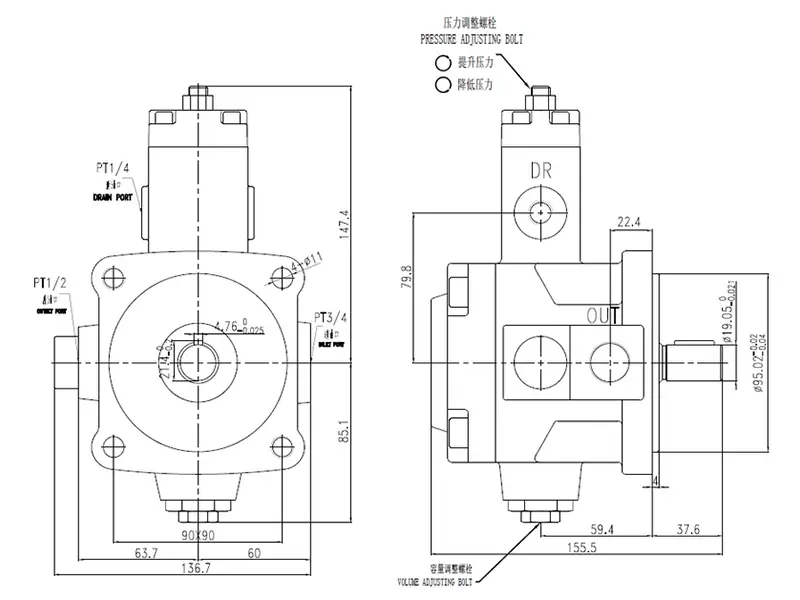

Picture 3.png

VP-23/26/30/40

model

Discharge capacity (1800rpm) (L/min)

Pressure adjustment range (bar)

Rated speed(rpm)

maximum

smallest

VP-23

23

3~70

1800

800

VP-26

26

3~70

1800

800

VP-30

30

3~70

1800

800

VP-40

40

3~70

1800

800

3--3 Line drawing.JPG

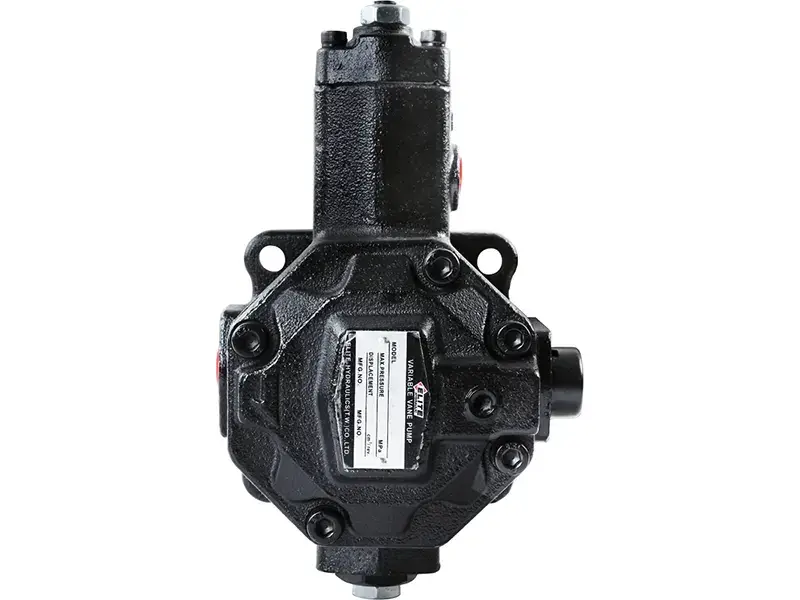

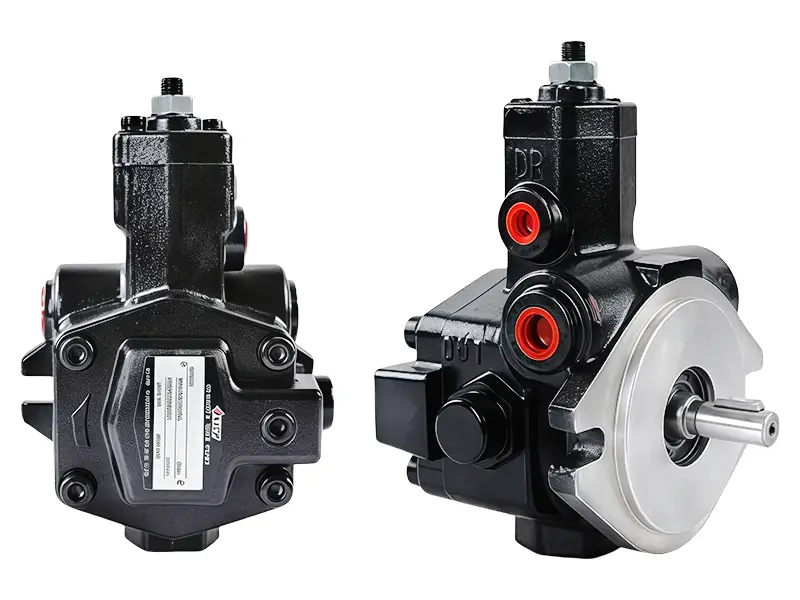

SVPF-08/12/15/20

model

Discharge capacity (1800rpm) (L/min)

Pressure adjustment range (bar)

Rated speed(rpm)

maximum

smallest

SVPF-08

8

3~70

1800

800

SVPF-12

12

3~70

1800

800

SVPF-15

15

3~70

1800

800

SVPF-20

20

3~70

1800

800

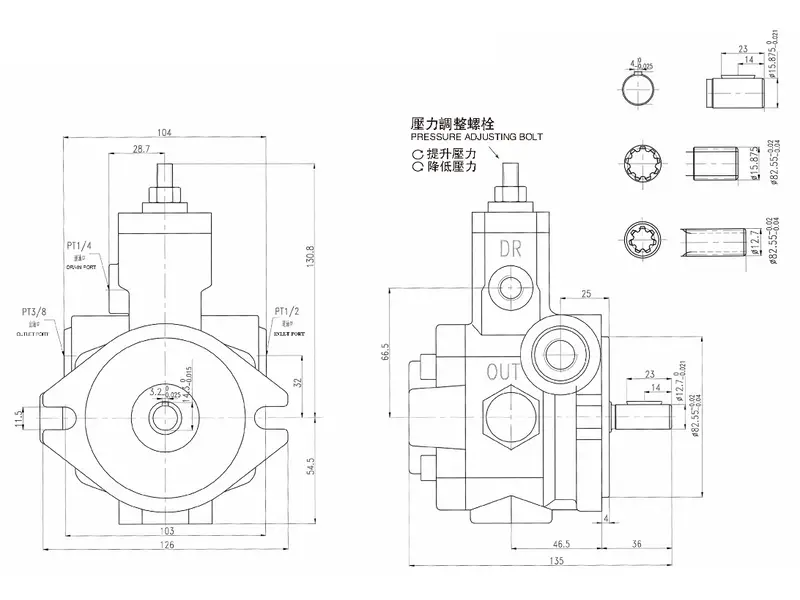

4-- Line drawing.png

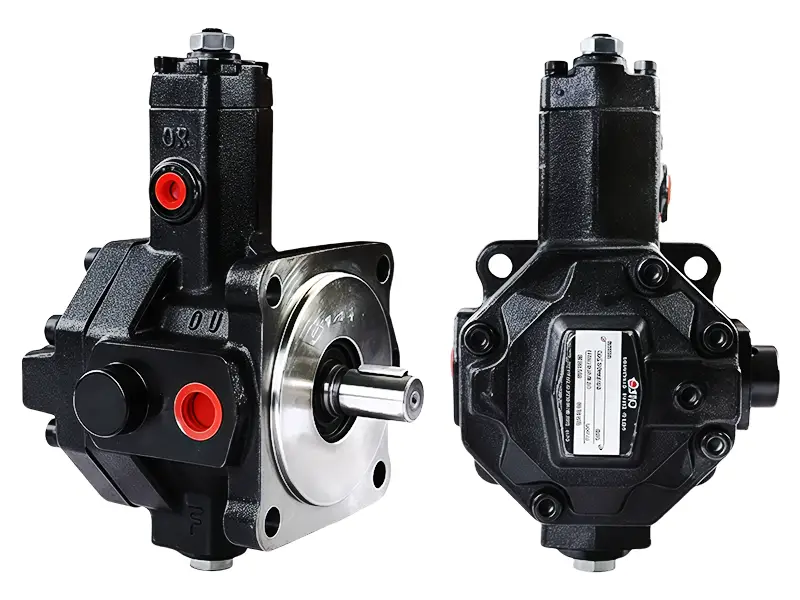

SVPF-23/26/30/40

model

Discharge capacity (1800rpm) (L/min)

Pressure adjustment range (bar)

Rated speed(rpm)

maximum

smallest

SVPF-23

23

3~70

1800

800

SVPF-26

26

3~70

1800

800

SVPF-30

30

3~70

1800

800

SVPF-40

40

3~70

1800

800

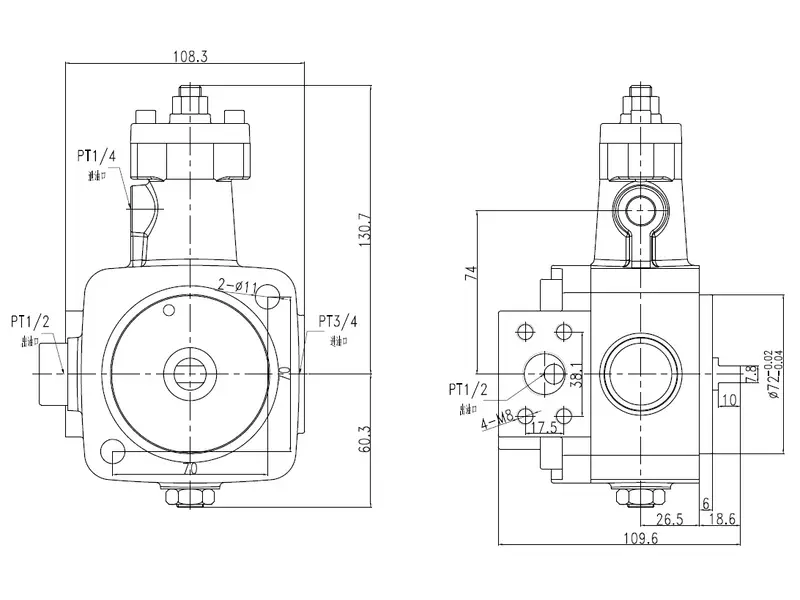

5- (1).png

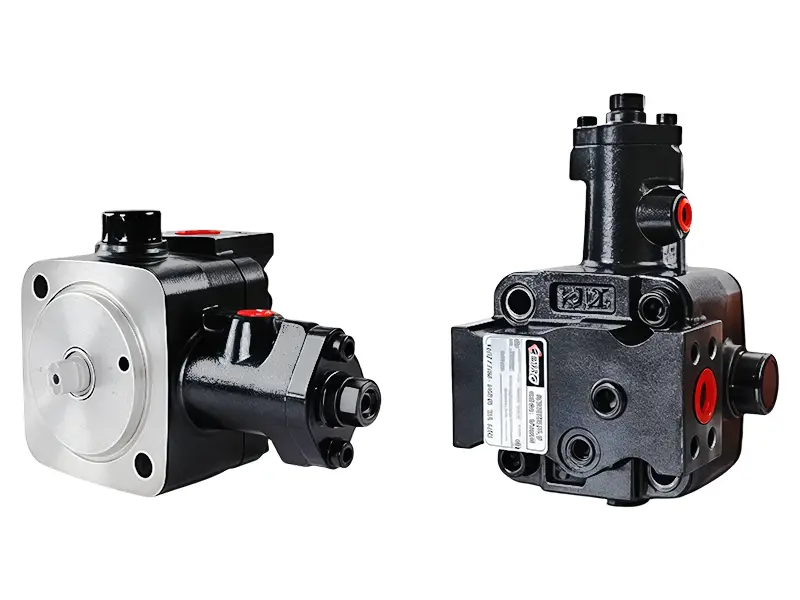

VDP-15/30/40

model

Discharge capacity (1800rpm) (L/min)

Pressure adjustment range (bar)

Rated speed(rpm)

maximum

smallest

VDP-15

15

3~80

1800

800

VDP-30

30

3~80

1800

800

VDP-40

40

3~80

1800

800

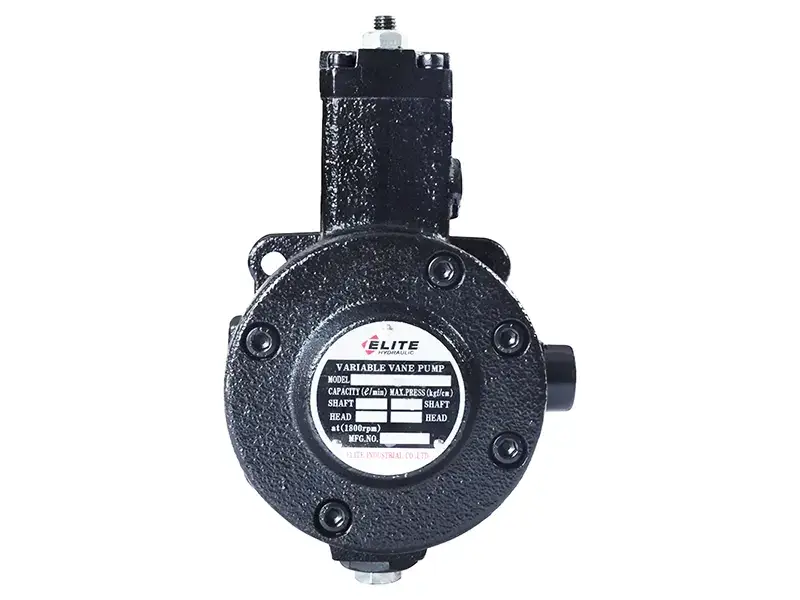

6- (1).png

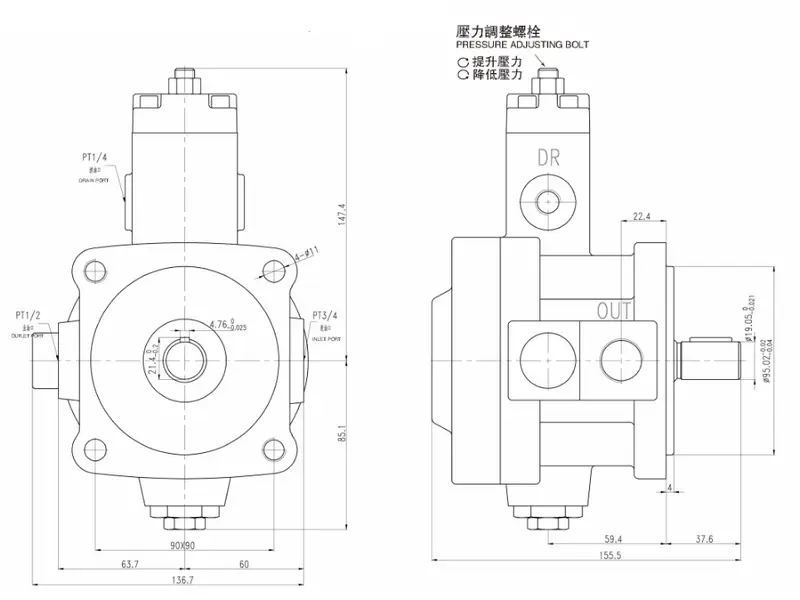

6- (2).png

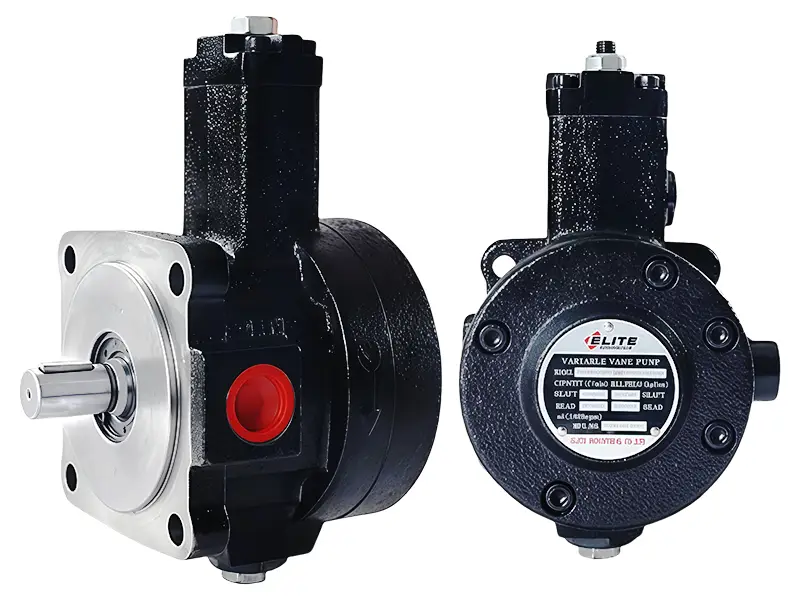

NVP-23/26/30/40

model

Discharge capacity (1800rpm) (L/min)

Pressure adjustment range (bar)

Rated speed(rpm)

maximum

smallest

NVP-23

23

3~70

1800

800

NVP-26

26

3~70

1800

800

NVP-30

30

3~70

1800

800

NVP-40

40

3~70

1800

800
