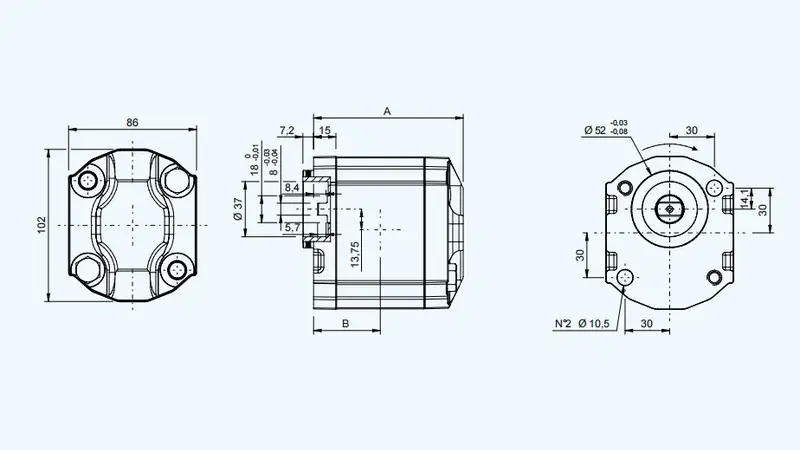

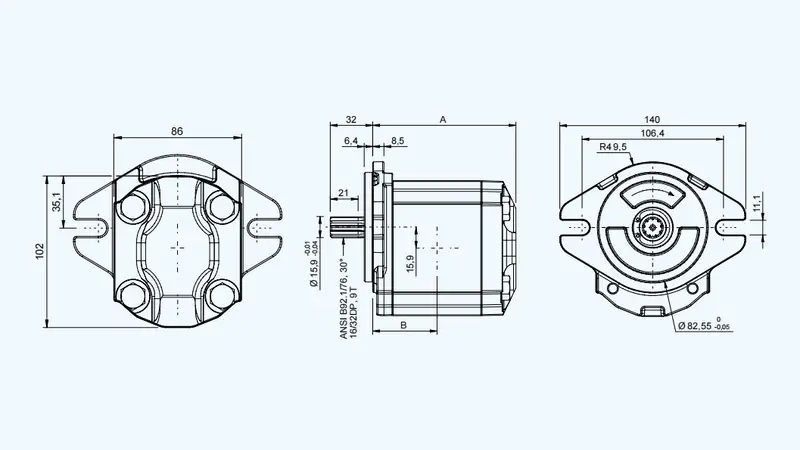

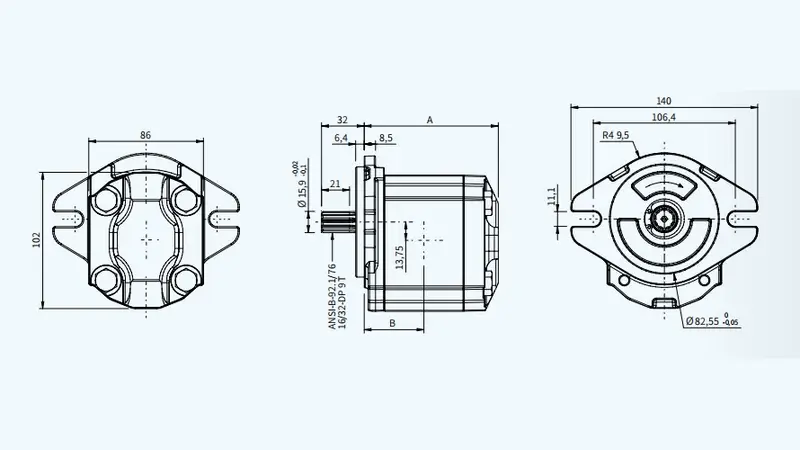

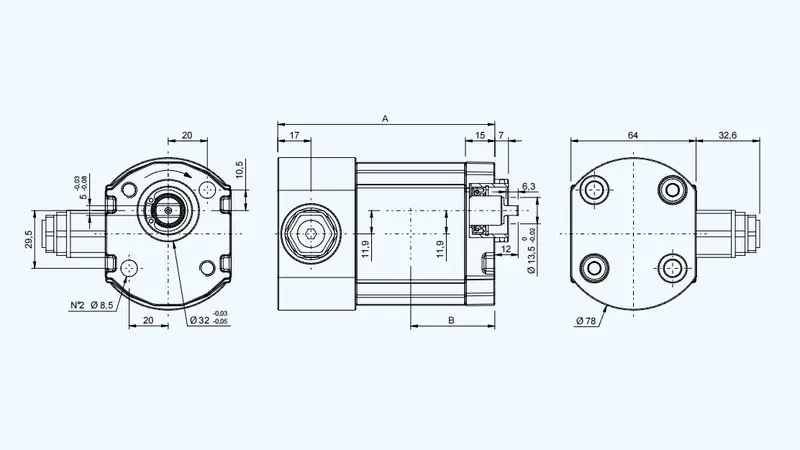

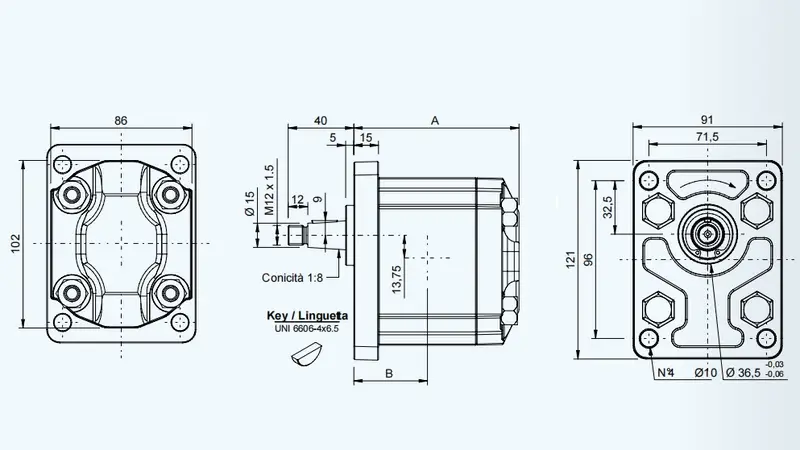

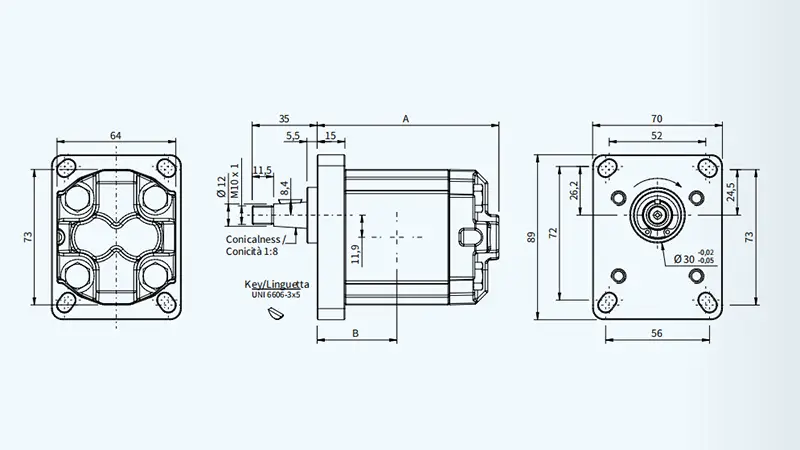

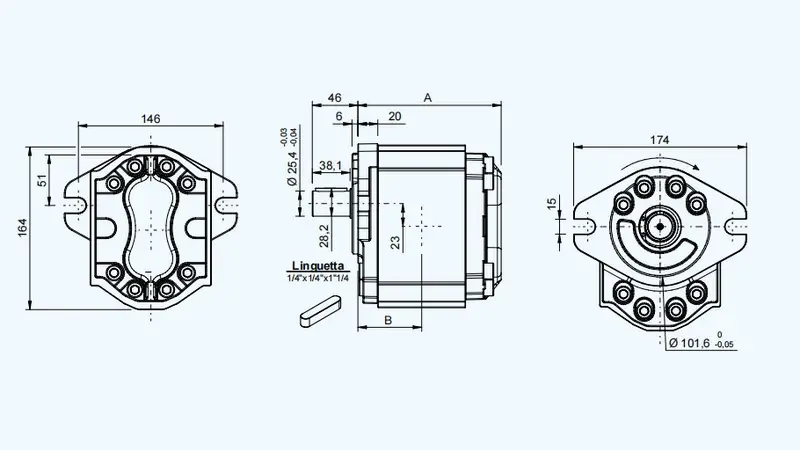

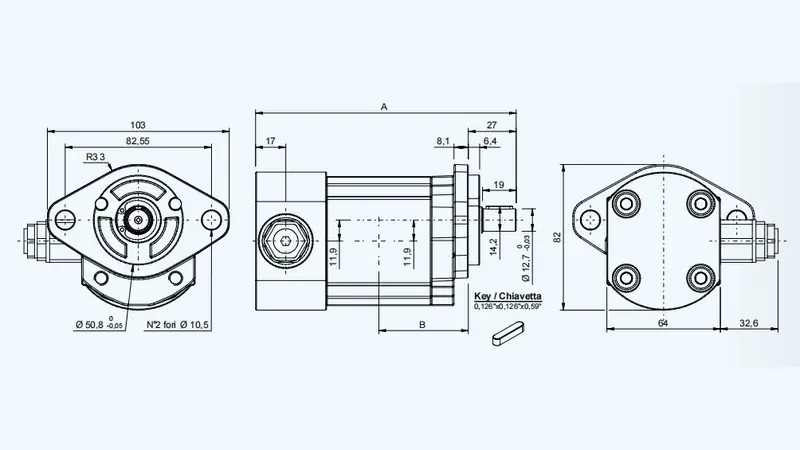

US28 Shaft and Flange Types and Dimensions

Model: US28

Level: 2V

Port:GU

Weight: 2kg

model		Displacement (cc/rev)	Flow(L/min)	Dimension A (mm)	Dimension B (mm)	Continuous pressure (bar)	Intermittent pressure (bar)	Peak pressure (bar)	Noise level(dBA)
F1AC3	4	42	6	101	445	275	280	300	55
	6	64	92	1,065	473	275	280	300	55
	8	83	12	1,115	498	246	260	280	55
	10	102	147	1,165	523	222	250	270	55
	13	129	186	1,224	557	176	230	250	55
F1AC3	4	42	6	101	445	275	280	300	55
	6	64	92	1,065	473	275	280	300	55
	8	83	12	1,115	498	246	260	280	55
	10	102	147	1,165	523	222	250	270	55
	13	129	186	1,224	557	176	230	250	55
F1P AC2	4	42	60	101	445	240	260	280	55
	6	64	92	1,065	473	220	240	270	55
	8	83	12	1,115	498	200	210	220	55
	10	102	147	1,165	523	160	170	180	55
	13	129	186	1,224	557	140	150	160	55
F1KAG54	4	42	6	101	445	275	280	300	55
	6	64	92	1,065	473	230	240	270	55
	8	83	12	1,115	498	180	200	210	55
	10	102	147	1,165	523	150	160	170	55
	13	129	186	1,224	557	120	130	140	55
F1K AGL54	4	42	6	101	445	275	280	300	55
	6	64	92	1,065	473	260	275	290	55
	8	83	12	1,115	498	230	240	250	55
	10	102	147	1,165	523	180	190	200	55
	13	129	186	1,224	557	150	160	170	55
F1KAGL544	4	42	6	114	445	275	280	300	55
	6	64	92	1,195	473	260	275	290	55
	8	83	12	1,245	498	230	240	250	55
	10	102	147	1,295	523	180	190	200	55
	13	129	186	1,364	557	150	160	170	55
FSAEAAAAC	4	42	6	107	505	234	238	255	55
	6	64	92	1,125	535	234	238	255	55
	8	83	12	1,175	558	209	221	238	55
	10	102	147	1,225	585	189	213	230	55
	13	129	186	1,294	617	170	196	215	55
FSAEAAAAC4	4	42	6	120	505	234	238	255	55
	6	64	92	1,255	535	234	238	255	55
	8	83	12	1,305	558	209	221	238	55
	10	102	147	1,355	585	189	213	230	55
	13	129	186	1,424	617	170	196	213	55
F1LAGL54	4	42	6	101	99	275	280	300	55
	6	64	92	1,065	1,045	260	275	290	55
	8	83	12	1,115	1,095	230	240	250	55
	10	102	147	1,165	1,145	180	190	200	55
	13	129	186	1,224	1,214	150	160	170	55
F1LAGL54	4	42	6	101	99	275	280	300	55
	6	64	92	1,065	1,045	230	240	270	55
	8	83	12	1,115	1,095	180	200	210	55
	10	102	147	1,165	1,145	150	160	170	55
	13	129	186	1,224	1,214	120	130	140	55

US33 Shaft and Flange Types and Dimensions

Model: US33

Grade: 2C

Port: QGU

Weight: 5kg

model		Displacement (cc/rev)	Flow(L/min)	Dimension A (mm)	Dimension B (mm)	Continuous pressure (bar)	Intermittent pressure (bar)	Peak pressure (bar)	Noise level(dBA)
F2 AC4	10	101	145	1,045	468	275	280	300	55
	13	126	181	1,094	492	265	270	290	55
	15	152	218	1,144	517	241	250	270	55
	18	182	261	1,202	546	206	250	270	55
F2BK7 AG	10	101	145	1,045	468	275	280	300	55
	13	126	181	1,094	492	265	270	290	55
	15	152	218	1,144	517	241	250	270	55
	18	182	261	1,202	546	206	250	270	55
FSAEA AC	10	101	145	1,045	468	275	280	300	55
	13	126	181	1,094	492	265	270	290	55
	15	152	218	1,144	517	241	250	270	55
	18	182	261	1,202	546	206	250	270	55
FSAEA AT9	10	101	145	1,045	468	275	280	300	55
	13	126	181	1,094	492	265	270	290	55
	15	152	218	1,144	517	241	250	270	55
	18	182	261	1,202	546	206	250	270	55

US38 Shaft and Flange Types and Dimensions

Model: US38

Grade: 2C

Port: QGU

Weight: 6kg

model		Displacement (cc/rev)	Flow(L/min)	Dimension A (mm)	Dimension B (mm)	Continuous pressure (bar)	Intermittent pressure (bar)	Peak pressure (bar)	Noise level(dBA)
F2 AC4	16	159	228	108	485	265	280	300	55
	18	179	258	111	50	247	260	280	55
	20	20	288	114	515	230	250	270	55
	22	221	318	117	53	222	240	260	55
	25	252	362	1,215	553	200	210	220	55
F2BK7 AG	28	283	407	126	575	180	190	200	55
	16	159	228	108	485	265	280	300	55
	18	179	258	111	50	247	260	280	55
	20	20	288	114	515	230	250	260	55
	22	221	318	117	53	210	230	240	55
F5AEAAC	25	252	362	1,215	553	200	210	220	55
	28	283	407	126	575	180	190	200	55
	16	159	228	108	485	265	280	300	55
F5AEAAT9	18	179	258	111	50	247	260	280	55
	20	20	288	114	515	230	250	270	55
	22	221	318	117	53	222	240	260	55
	25	252	362	1,215	553	200	210	220	55
	28	283	407	126	575	180	190	200	55
F5AEA AT11	16	159	228	108	485	265	280	300	55
	18	179	258	111	50	247	260	280	55
	20	20	288	114	515	230	250	270	55
	22	221	318	117	53	222	250	270	55
	25	252	362	1,215	553	200	250	270	55
	28	283	407	126	575	197	250	270	55

US47 Shaft and Flange Types and Dimensions

Model: US47

Grade: 2C

Port: QGU

Weight: 10kg

model		Displacement (cc/rev)	Flow(L/min)	Dimension A (mm)	Dimension B (mm)	Continuous pressure (bar)	Intermittent pressure (bar)	Peak pressure (bar)	Noise level(dBA)
F3 AC9	28	280	403	1,395	615	270	280	300	57
	32	322	463	1,435	635	252	270	280	57
	36	363	523	1,475	655	239	250	270	57
	40	405	583	1,515	675	225	250	270	57
	45	455	650	156	698	213	250	270	57
	50	503	724	161	723	202	250	270	57
FSAEB AC	28	280	403	1,395	615	270	280	300	57
	32	322	463	1,435	635	252	270	280	57
	36	363	523	1,475	655	239	250	270	57
	40	405	583	1,515	675	225	250	270	57
	45	455	650	156	698	213	250	270	57
	50	503	724	161	723	202	250	270	57
FSAEB AT13	28	280	403	1,395	615	270	280	300	57
	32	322	463	1,435	635	252	270	280	57
	36	363	523	1,475	655	239	250	270	57
	40	405	583	1,515	675	225	250	270	57
	45	455	650	156	698	213	250	270	57
	50	503	724	161	723	202	250	270	57

US55 Shaft and Flange Types and Dimensions

Model: US55

Level: 2V

Port:GU

Weight: 2kg

Available flange and shaft types: FSAEB AC

model	Displacement (cc/rev)	Flow(L/min)	Dimension A (mm)	Dimension B (mm)	Continuous pressure (bar)	Intermittent pressure (bar)	Peak pressure (bar)	Noise level(dBA)
50	505	727	1,795	8,150	275	280	300	57
63	635	914	1,885	8,600	249	260	280	57
75	750	1,081	1,965	9,000	229	250	270	57
90	909	1,309	2,075	955	178	240	260	57

Model: US55

Level: 2V

Port:GU

Weight: 2kg

Available flange and shaft types: FSAEB AT15

model	Displacement (cc/rev)	Flow(L/min)	Dimension A (mm)	Dimension B (mm)	Dimension C (mm)		Continuous pressure (bar)	Intermittent pressure (bar)	Peak pressure (bar)	Noise level(dBA)
model	Displacement (cc/rev)	Flow(L/min)	Dimension A (mm)	Dimension B (mm)	0	OE	Continuous pressure (bar)	Intermittent pressure (bar)	Peak pressure (bar)	Noise level(dBA)
50	505	727	1,570	705	70,5 70,5		275	280	300	57
63	635	914	1,660	750	785	750	249	260	280	57
75	750	1,081	1,740	790	825	790	229	250	270	57
90	909	1,309	1,850	845	88,0 84,5		178		240 260	57

US72 Shaft and Flange Types and Dimensions

Model: US72

Level: 2V

Port: ME

Weight: 30kg

model		Displacement (cc/rev)	flow (L/min)	Size A (mm)	Size B (mm)	Size C (mm)	continuous pressure (bar)	intermittent pressure (bar)	peak pressure (bar)	Noise level (dBA)
FSAEDAC	94	941	136	245	1,255	1,285	240	250	260	57
	101	1,014	147	248	127	134	230	240	250	57
	125	1,255	181	258	132	145	220	220	230	57
	150	1,509	218	2,685	1,373	1,503	200	210	220	57
	175	175	253	2,785	1,423	1,553	180	190	200	57
	200	2,004	290	289	1,475	1,605	160	170	180	57
FSAED AT23	94	941	136	245	1,255	1,285	240	250	260	57
	101	1,014	147	248	127	134	230	240	250	57
	125	1,255	181	258	132	145	220	220	230	57
	150	1,509	218	2,685	1,373	1,503	200	210	220	57
	175	175	253	2,785	1,423	1,553	180	190	200	57
	200	2,004	290	289	1,475	1,605	160	170	180	57
