| Quantity: | |
|---|---|
Technical parameters
project | Technical parameter values | |
Specification | type | Three-phase squirrel-cage induction motor (SCIM) |
Voltage | Can produce voltages from all over the world | |
frequency | Rated frequency 50HZ or 60HZ (5HP/60HZ common specifications can be produced below 5HP) | |
Output HP | 1~3HP | |
time rated | Continuous use within rated torque | |
Cooling method | Fully sealed external fan forced cooling | |
protection method | Fully dense type (IP54) | |
Scope of application | power supply | Voltage change rate: within ±10%, frequency change rate: within ±5% |
Usage environment | General indoor environment, ambient temperature -10℃~40℃, humidity: RH90% or less | |
Driving method | Direct-connected shaft single-key coupling transmission | |
turn | Forward rotation | |
characteristic | Test method | According to the International Electrical Code (IEC34) and Chinese National Standard (CNS10919), full voltage starting test is used |
temperature rise | Stator winding temperature rise: resistance method below 75℃, service factor (SF) 1.0 | |
Overspeed characteristics | 4P is 125% synchronous speed for 1 minute, 6P is 150% synchronous speed for 1 minute | |
Over torque characteristics | 160% rated torque for 20 seconds | |

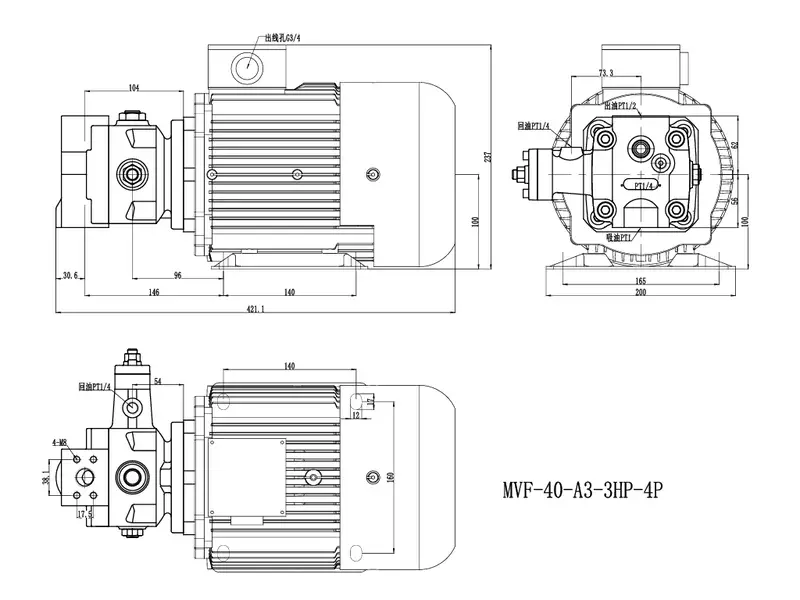

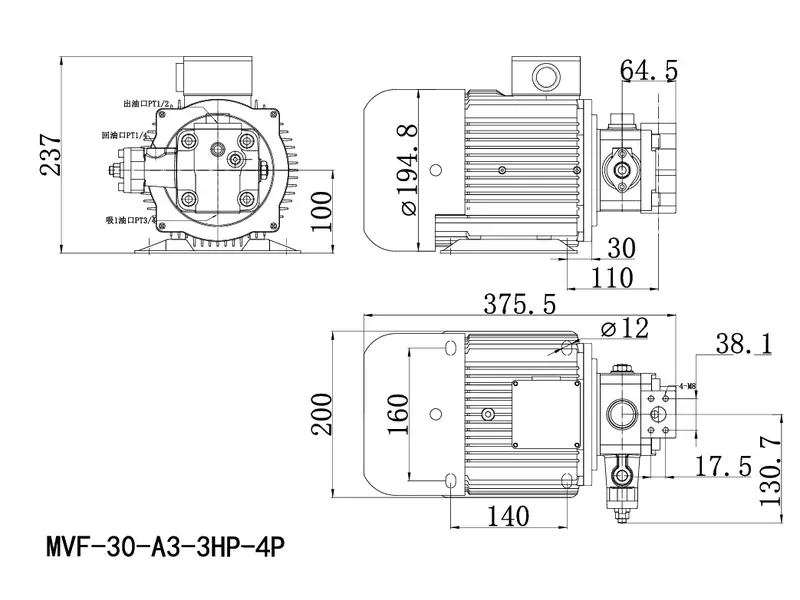

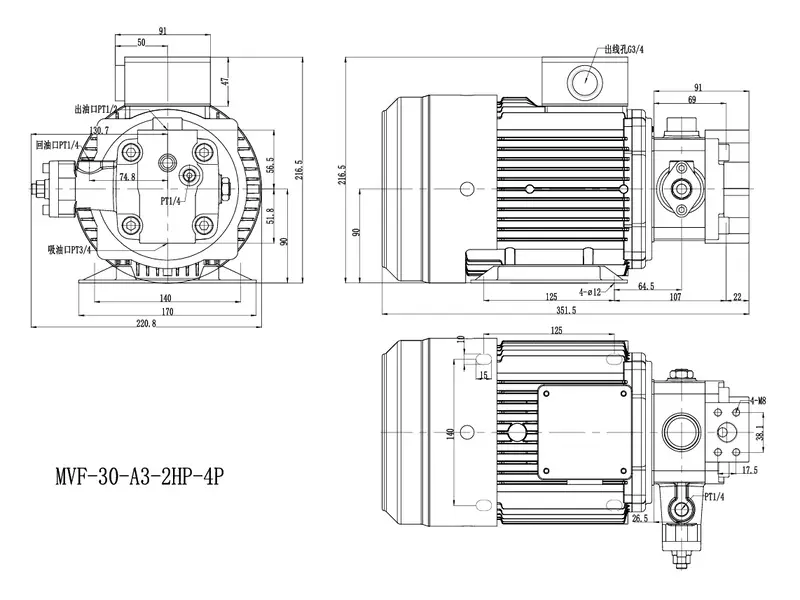

Dimensional drawing (unit: mm)
 |  |  |

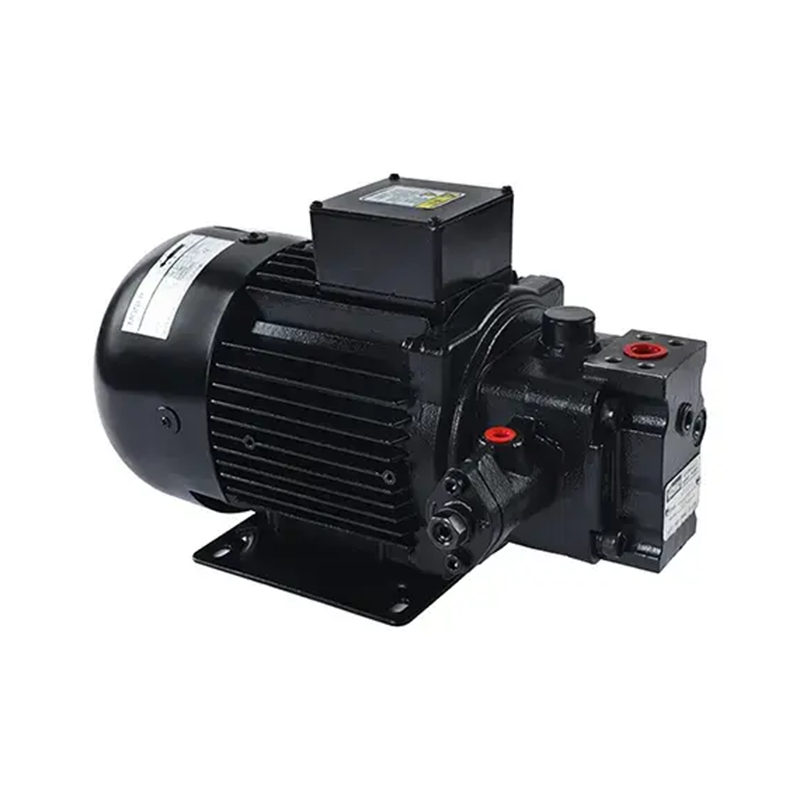

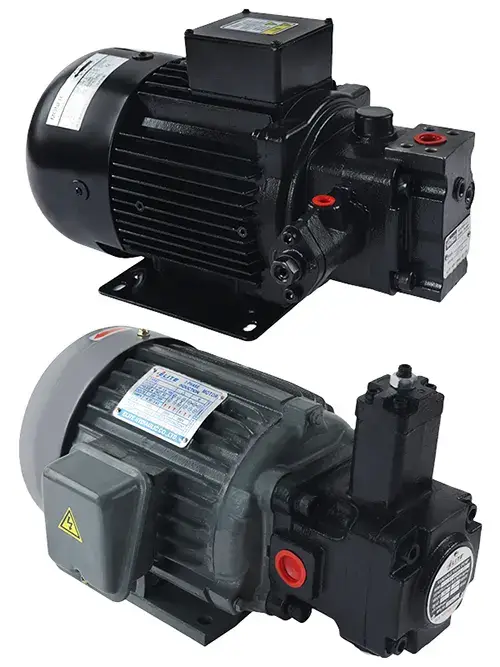

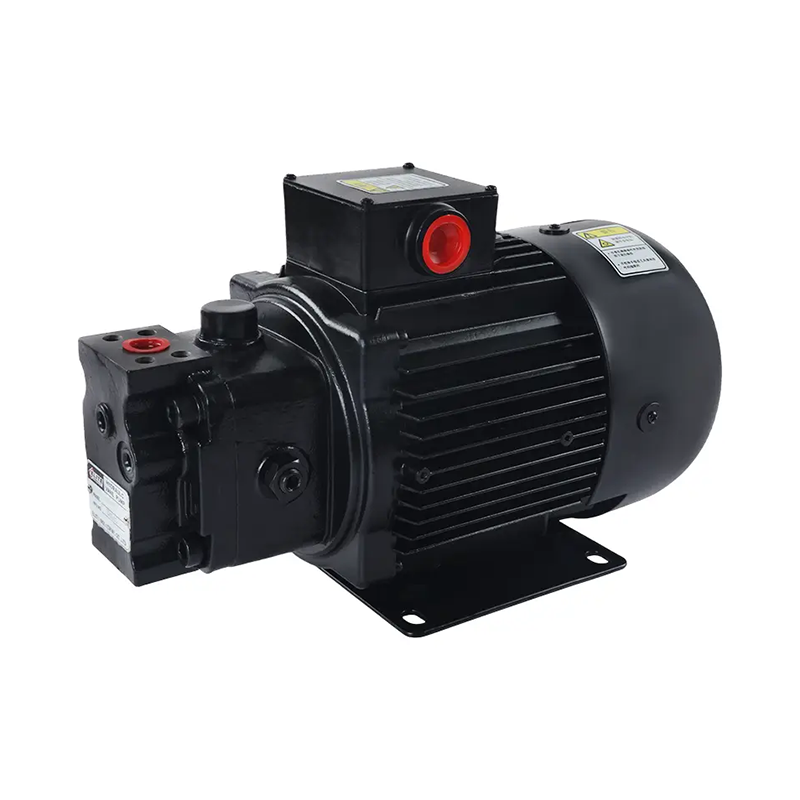

Motor pump set (vane pump + motor)
Our motor pump sets combine high-efficiency vane pumps with high-performance motors designed for industrial applications to provide superior fluid transfer.
Features
High efficiency and energy saving: The floating valve plate design, combined with a high-efficiency motor, significantly reduces energy consumption.
Smooth operation: The radial hydraulic pressure balance technology of the double-acting vane pump reduces vibration and noise and extends the service life of the equipment.
Compact design: The motor and pump body are integrated, occupying small space and easy to install and maintain, suitable for scenes with limited space.
Durable and reliable: Made of high-strength composite materials and precision manufacturing processes, it is corrosion-resistant and wear-resistant, and can adapt to harsh working environments.
Easy to maintain: Modular design, key components are easy to replace, reducing downtime and improving operational efficiency.
application
Industrial manufacturing: widely used in medium and low pressure hydraulic systems such as precision machine tools, injection molding machines, and pressure machinery.
Engineering machinery: suitable for excavators, loaders and other equipment to ensure efficient hydraulic transmission.
