| Quantity: | |
|---|---|

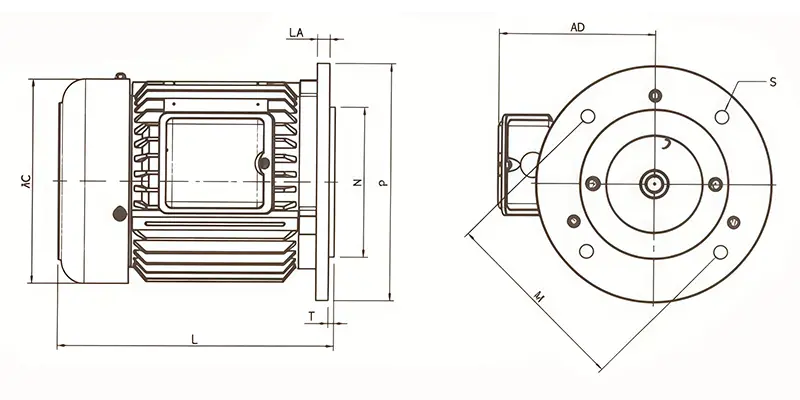

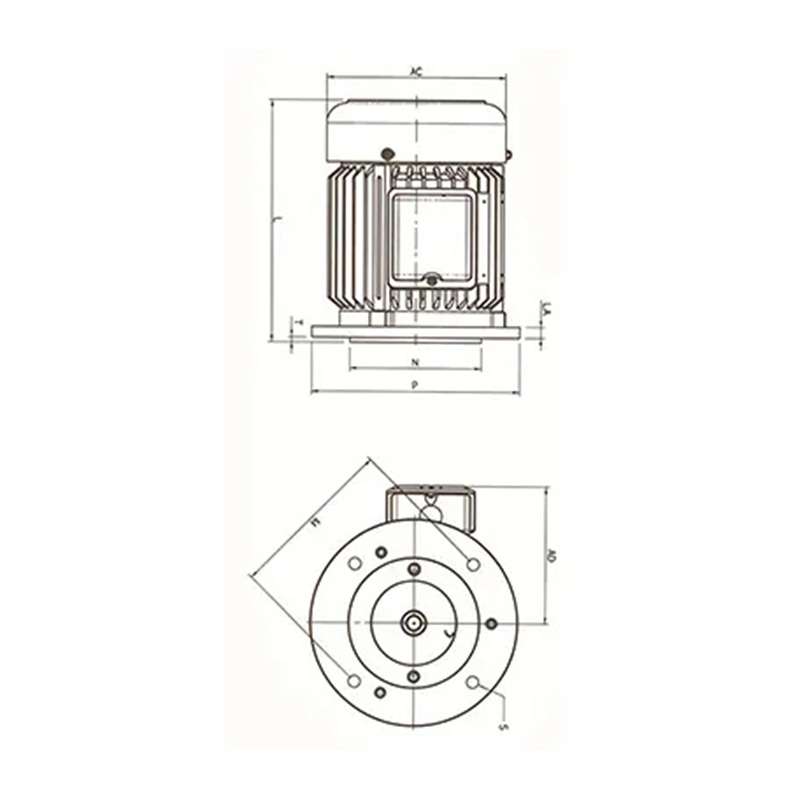

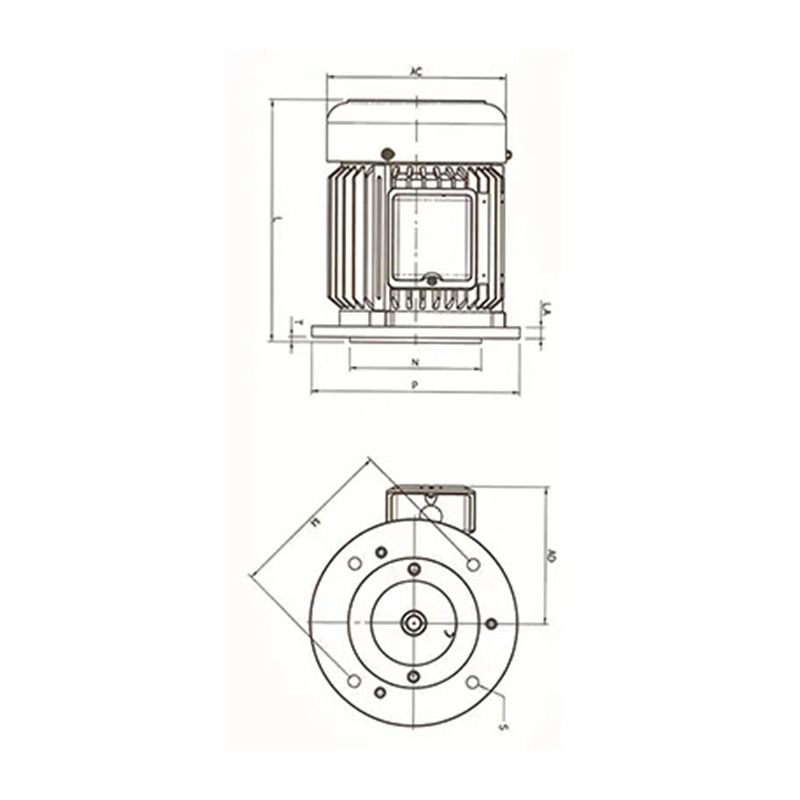

4P | 6P | Frame number | Number of phases | AC | AD | L | LA | M | N | P | S | T | Net weight(kg) |
1 | 1/2 | 80 | 三 | 177 | 139 | 248 | 10 | 180 | 130 | 205 | 12 | 12 | 16.5 |
1 | - | 90 | 单 | 195 | 154 | 280 | 10 | 200 | 130 | 230 | 12 | 10 | 24 |
2 | 1 | 90 | 三 | 195 | 148 | 258 | 10 | 200 | 130 | 230 | 12 | 10 | 24 |
2 | - | 90 | 单 | 196 | 155 | 306 | 10 | 200 | 130 | 230 | 12 | 10 | 30 |
3 | 2 | 112 | 三 | 230 | 166 | 285 | 11 | 215 | 180 | 250 | 14 | 9 | 32 |
7.5 | 5 | 132 | 三 | 268 | 195 | 345 | 13.5 | 265 | 230 | 300 | 15 | 5 | 61 |
10 | 7.5 | 132 | 三 | 268 | 195 | 380 | 13.5 | 265 | 230 | 300 | 15 | 5 | 71 |

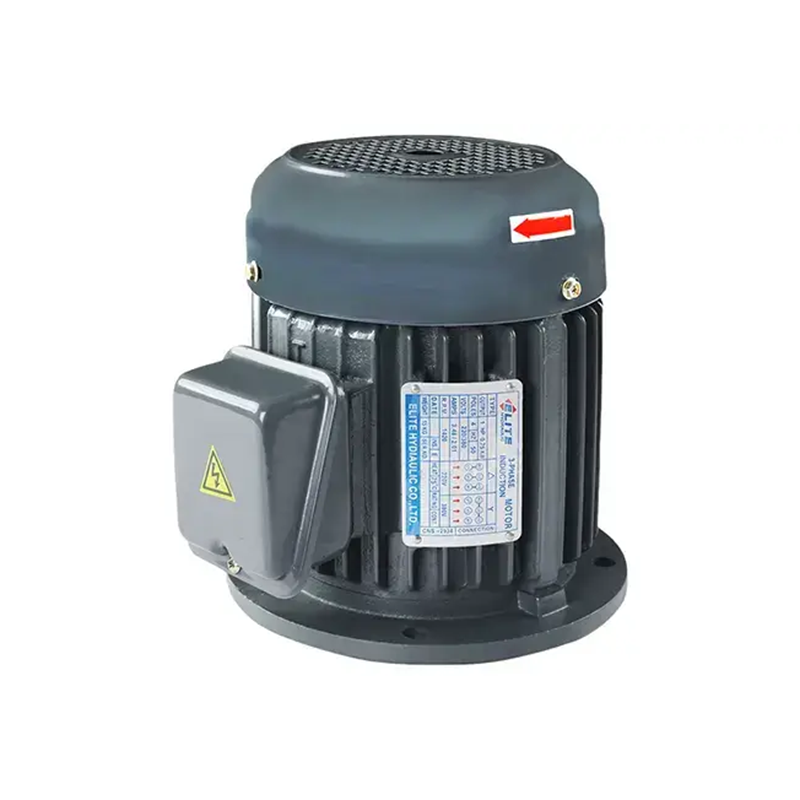

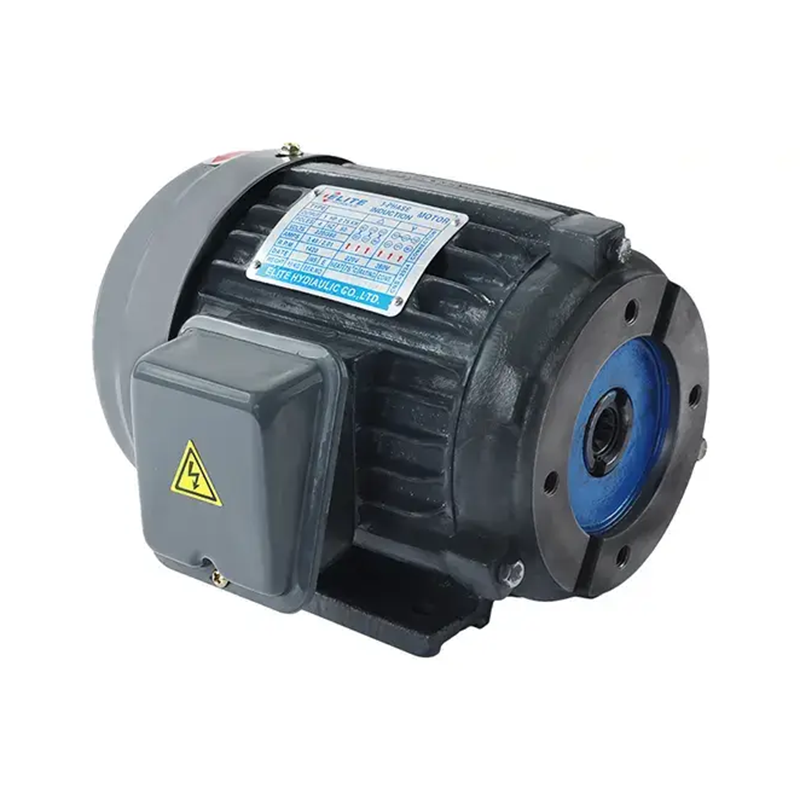

Hydraulic special motor
Hydraulic special motors are motors designed specifically to drive hydraulic pumps. They play an important role in the industrial field, especially in hydraulic systems that require precise control and powerful power output.
Features
Inner shaft design: The hydraulic special motor adopts an inner shaft structure, which can be directly matched with the hydraulic pump without the need for additional couplings, simplifying installation, saving space, and reducing noise and heat.
High-precision fit: The mating surfaces of the motor and pump are processed with high precision to ensure coaxiality, which not only improves efficiency but also reduces maintenance requirements.
Simple and efficient structure: specially optimized for hydraulic pumps, with simple structural design, high operating efficiency, low noise, and suitable for long-term stable work.
Application areas
Widely used: widely used in hydraulic systems in automobiles, engineering machinery, machine tools, mining, woodworking, cold presses, punching machines, agricultural machinery and other fields as a power source.
Hydraulic system drive: In the boom joints of construction machinery such as excavators and loaders, although the final actuator is a hydraulic cylinder, its power source is a hydraulic pump driven by a special hydraulic motor.
Precision control occasions: CNC hydraulic presses are driven by servo motors to achieve precise control. They are suitable for tooling pressing in motors, auto parts, home appliances, and electronic industries, as well as pressure constant pressure systems, testing systems, etc.
Manufacturing pressing and forming: In the imprinting, forming, shallow drawing, shaping and pressure assembly of metal or non-metal parts, hydraulic special motors provide stable power.
Combination with hydraulic system: The combination of hydraulic special motor and hydraulic pump is a key component in modern industrial automation. They control and drive various mechanical equipment by converting electrical energy into hydraulic energy. This combination can achieve a wide range of force and speed control, adapt to complex working environments and process requirements, and is an indispensable part of heavy industry and precision manufacturing.
