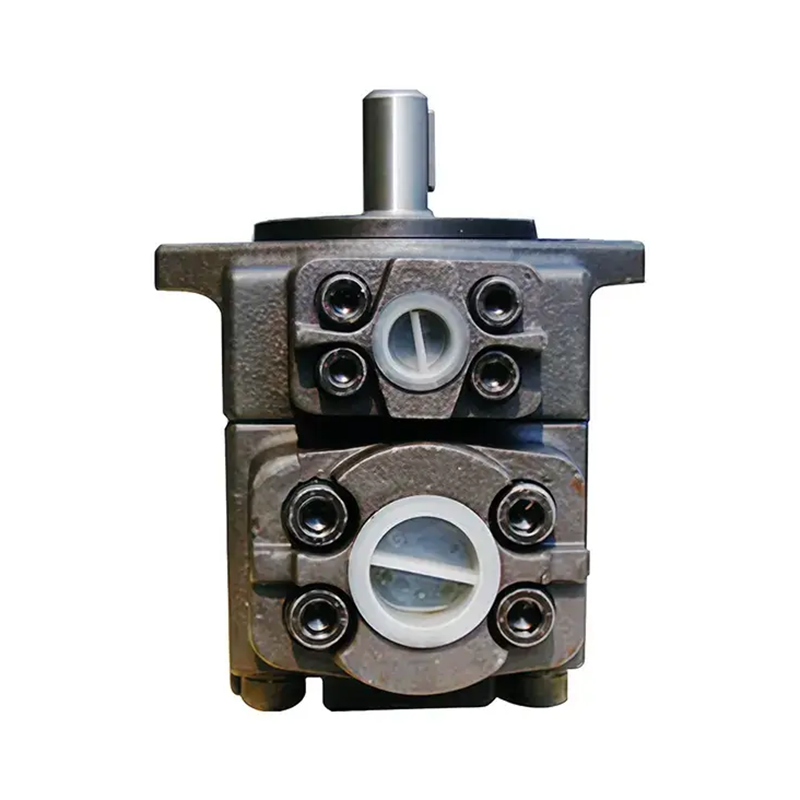

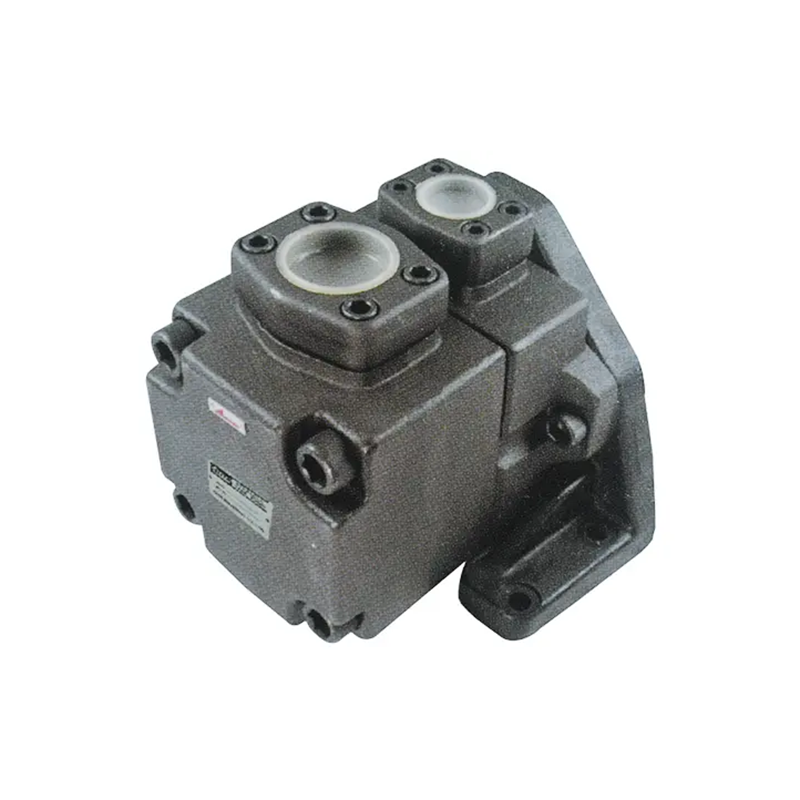

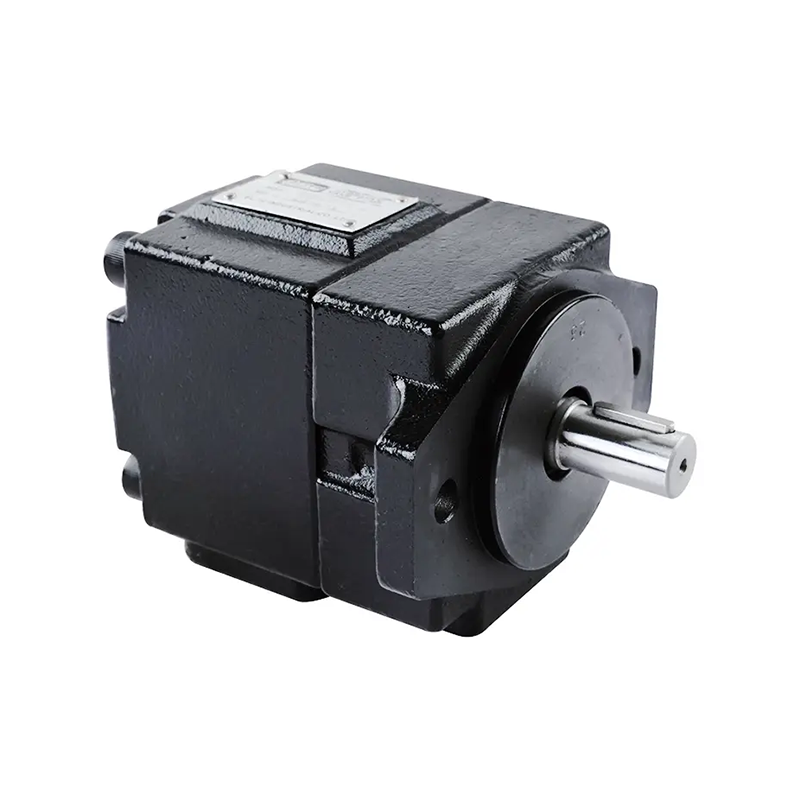

High pressure fixed capacity vane oil pump

Features
This pump is designed with low noise and high volumetric efficiency; it operates smoothly, has high stability and has a long life; the suction inlet is designed with special consideration of its suction impedance; the maximum pressure is 21MPa.

Availability:

Quantity:



Inquire Add to Basket

Product details

Specification parameter table

model	Ability to spit out (cc/rev)				Maximum pressure (kgf/cm ²)	Rated speed(rpm)
model	1000rpm	1200rpm	1500rpm	1800rpm	Maximum pressure (kgf/cm ²)	maximum	smallest

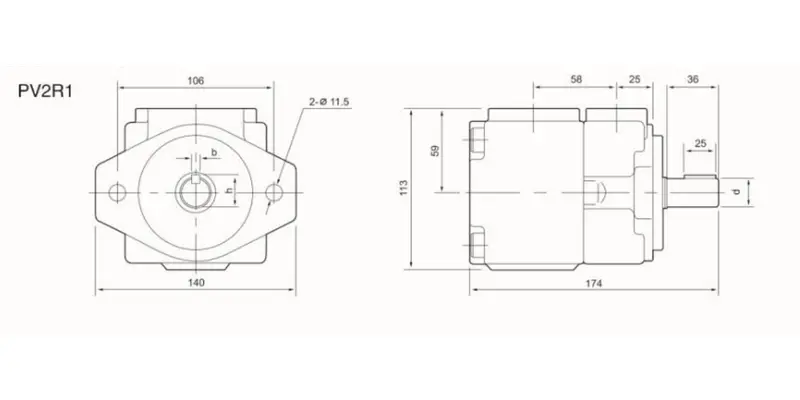

PV2R1-06	6.2	7.4	9.3	11.2	210	1800	1200
PV2R1-08	8.1	9.4	12.1	14.6	210	1800	950
PV2R1-10	10.1	12.1	15.1	18.9	245	1800	950
PV2R1-12	12.2	14.6	18.3	21.9	245	1800	950
PV2R1-14	13.6	17.1	21.5	25.7	245	1800	950
PV2R1-17	16.6	20.5	25.6	0.7	245	1800	950
PV2R1-19	18.6	23	28.8	34.5	245	1800	950
PV2R1-23	22.7	27.9	34.9	41.9	245	1800	950
PV2R1-25	25.3	31.3	39.1	46.9	245	1800	950
PV2R1-31	31	37.3	46.6	—	245	1500	950

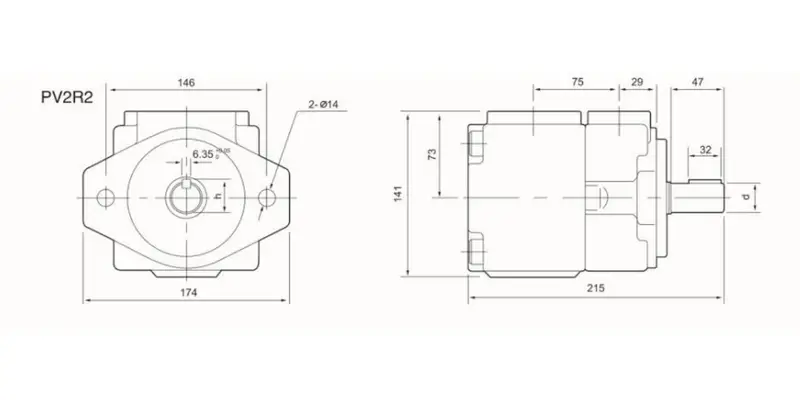

PV2R2-26	26.2	31.4	39.3	47.1	245	1800	950
PV2R2-33	33	38.5	48.1	57.7	245	1800	950
PV2R2-38	38.2	45.8	57.3	68.7	245	1800	950
PV2R2-41	41.3	49.2	61.5	73.8	210	1800	950
PV2R2-47	47.2	57.8	71.4	86.7	245	1800	950
PV2R2-53	53.1	63.7	79.6	95.5	245	1800	950
PV2R2-59	60.2	72.7	90.3	108.3	210	1800	950
PV2R2-65	65.3	78.3	97.9	117.5	210	1800	950

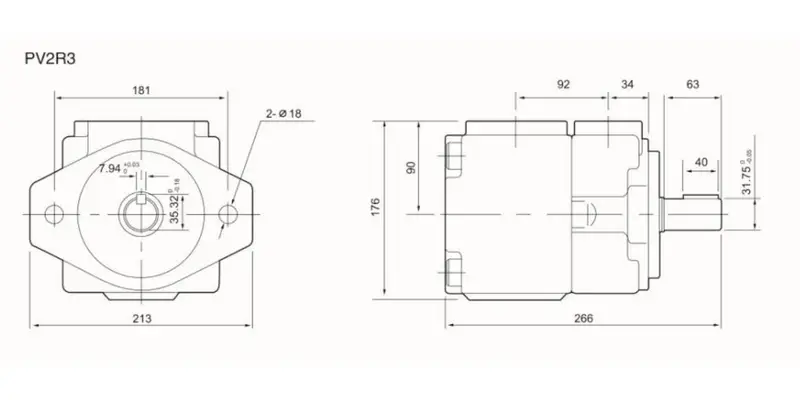

PV2R3-60	60.3	72.3	90.4	108.5	210	1800	900
PV2R3-66	66.4	79.6	99.6	119.5	210	1800	900
PV2R3-76	76.3	91.5	114.4	137.3	210	1800	900
PV2R3-85	84.5	101.4	126.7	152.1	210	1800	900
PV2R3-88	88.3	105.9	132.4	158.9	210	1800	900
PV2R3-94	93.6	113.4	141.7	170.1	210	1800	900
PV2R3-108	108.2	129.8	162.3	194.4	210	1800	900
PV2R3-116	115.6	139.3	174.1	208.9	175	1800	900
PV2R3-126	125.6	149.5	186.9	226	175	1500	900
