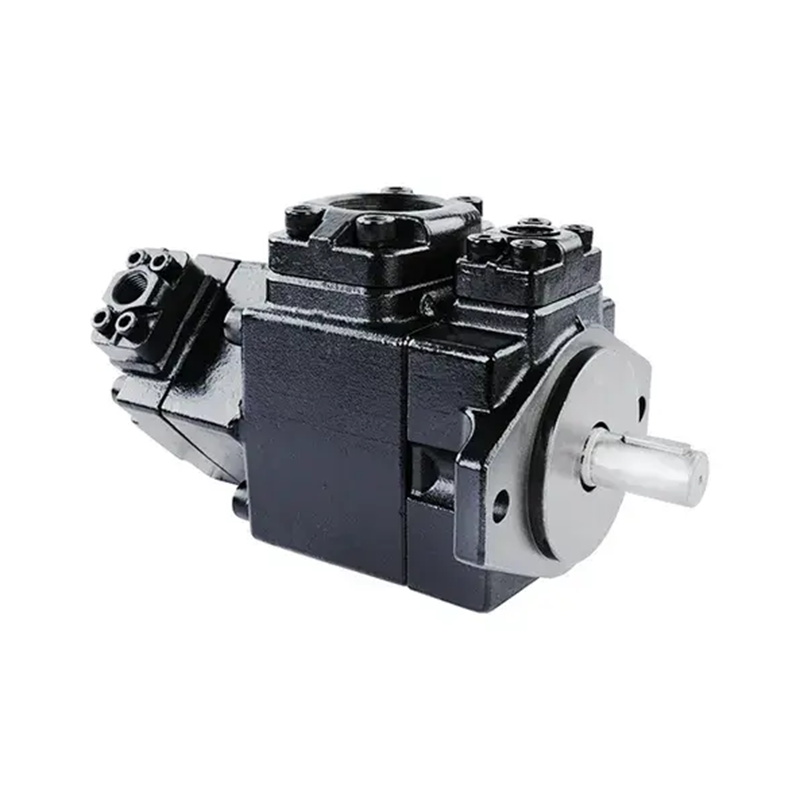

High pressure fixed capacity double vane oil pump

This product is composed of two high-pressure vane pumps and is designed for dual hydraulic sources required for the hydraulic circuit to perform two actions at the same time. Single suction port saves pipes, is easy to use and reduces costs.

Availability:

Quantity:



Inquire Add to Basket

Product details

Specification parameter table

model	Ability to spit out (cc/rev)				maximum pressure kgf/c㎡	Rated speed(rpm)
model	1000rpm	1200rpm	1500rpm	1800rpm	maximum pressure kgf/c㎡	maximum	smallest
PV2R1-06	6.2	7.4	9.3	11.2	210	1800	1200
PV2R1-08	8.1	9.7	12.1	14.6	210	1800	950
PV2R1-10	10.1	12.1	15.1	18.9	245	1800	950
PV2R1-12	12.2	14.6	18.3	21.9	245	1800	950
PV2R1-14	13.6	17.1	21.5	25.7	245	1800	950
PV2R1-17	16.6	20.5	25.6	30.7	245	1800	950
PV2R1-19	18.6	23	28.8	34.5	245	1800	950
PV2R1-23	22.7	27.9	34.9	41.9	245	1800	950
PV2R1-25	25.3	31.3	39.1	46.9	245	1800	950
PV2R1-31	31	37.3	46.6	—	245	1500	950
PV2R2-26	26.2	31.4	39.3	47.1	245	1800	950
PV2R2-33	33	38.5	48.1	57.7	245	1800	950
PV2R2-38	38.2	45.8	57.3	68.7	245	1800	950
PV2R2-41	41.3	49.2	61.5	73.8	210
PV2R2-47	47.2	57.8	71.4	86.7	245	1800	950
PV2R2-53	53.1	63.7	79.6	95.5	245	1800	950
PV2R2-59	60.2	72.7	90.3	108.3	210	1800	950
PV2R2-65	65.3	78.3	97.9	117.5	210	1800	950
