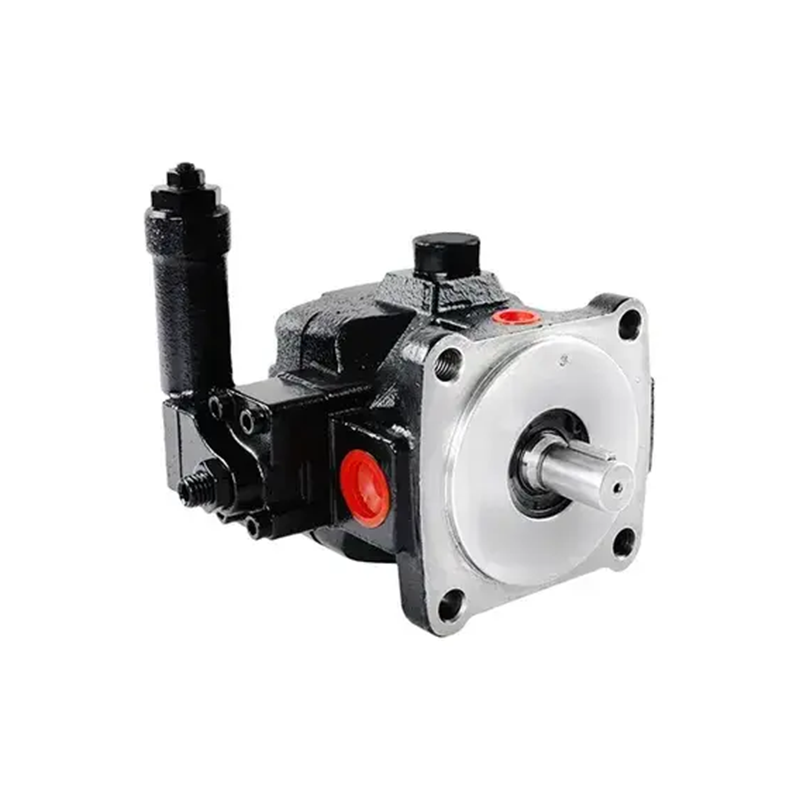

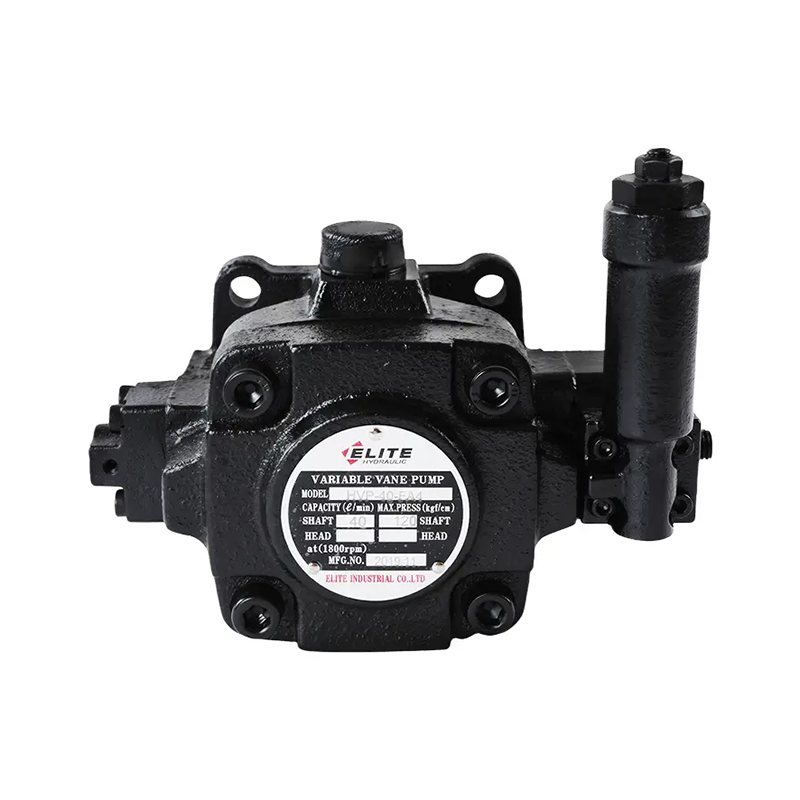

HVP series medium pressure variable capacity vane oil pump

Features
'Shaft clearance compensation' has stable performance and high efficiency during high-pressure operation.
'Eccentric plunger' has fast response, starts, stops, load changes, and moves sensitively.
The pressure adjustment is easy, the stability is high and the response is fast.
Availability:
Quantity:
Inquire Add to Basket

Specification parameter table

model

Discharge capacity
(1800rpm)
(L/min)

Pressure adjustment range
(bar)

Rated speed
(rpm)

maximum

smallest

HVP-30

30

35~140

1800

800

HVP-40

40

35~140

1800

800

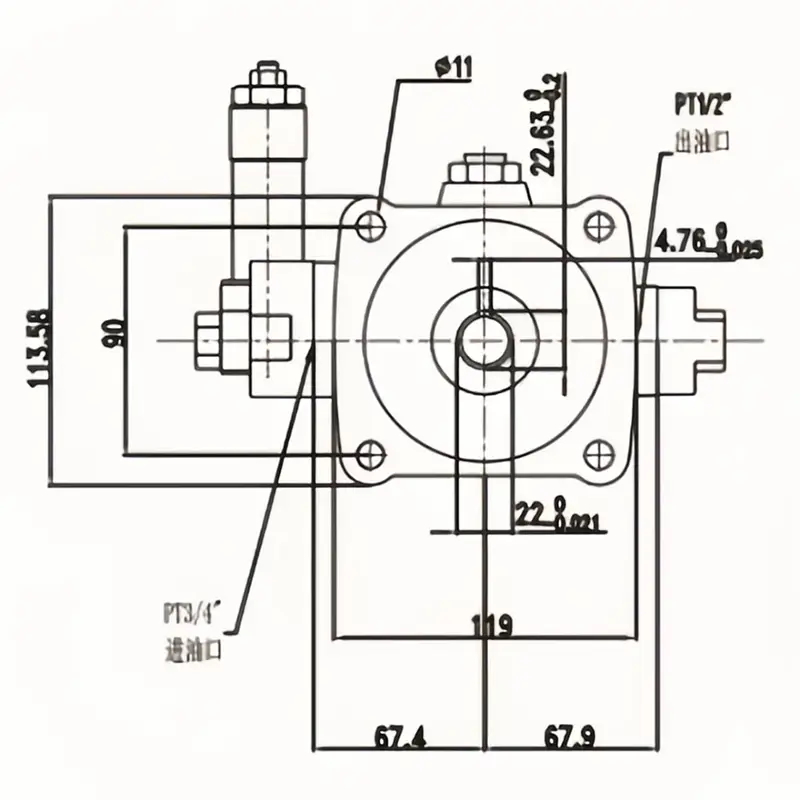

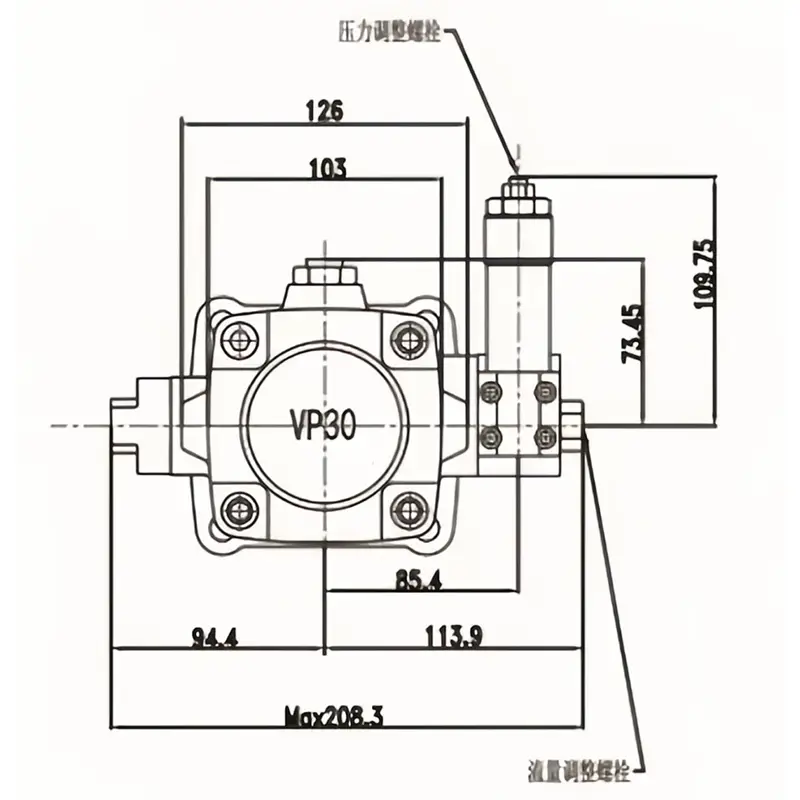

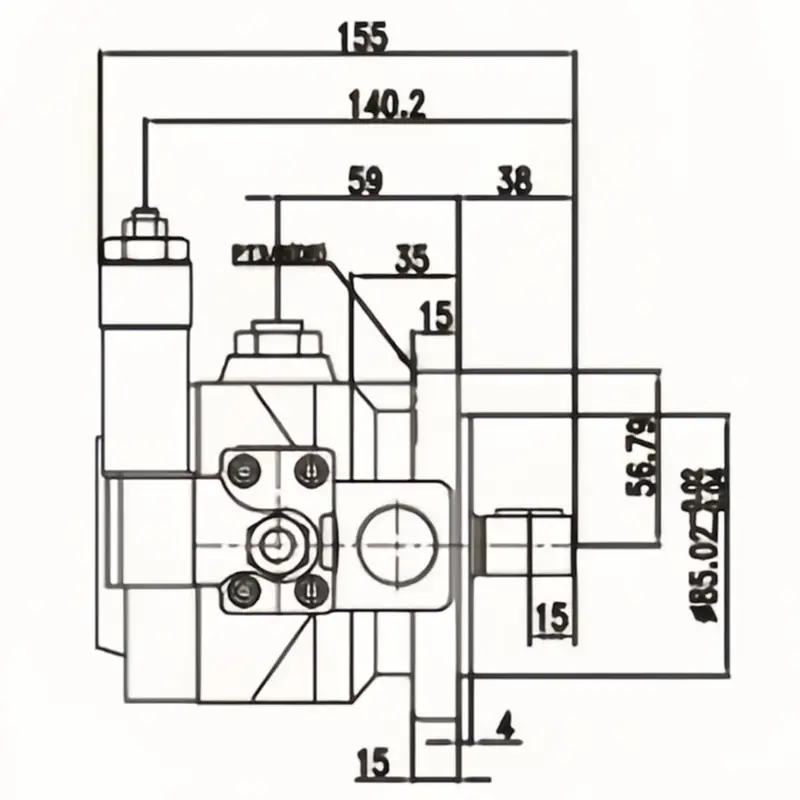

Dimensional drawing

Picture 1.png
Picture 2.png
Picture 3.png
