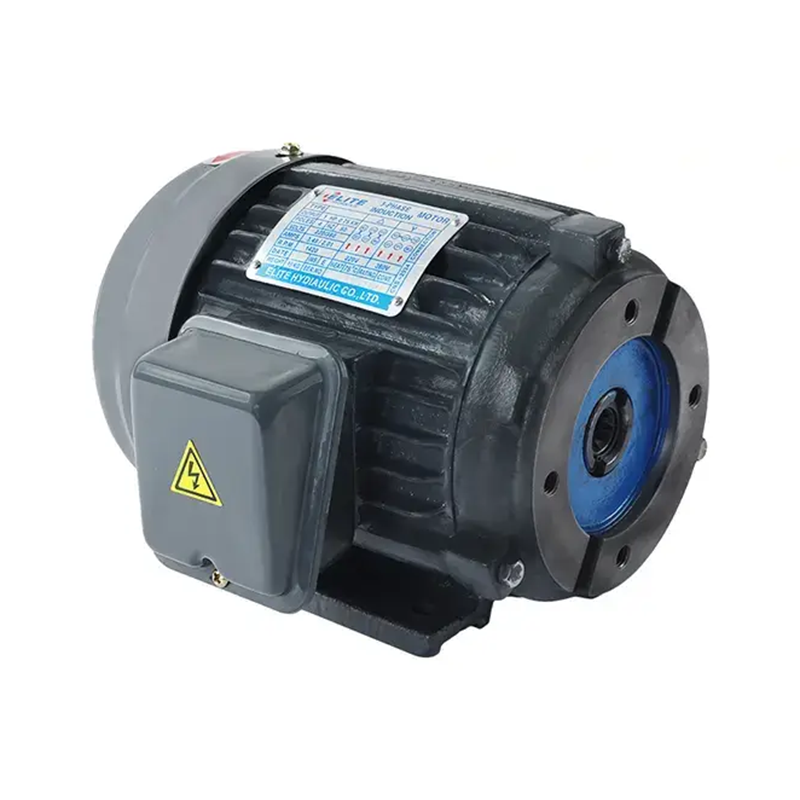

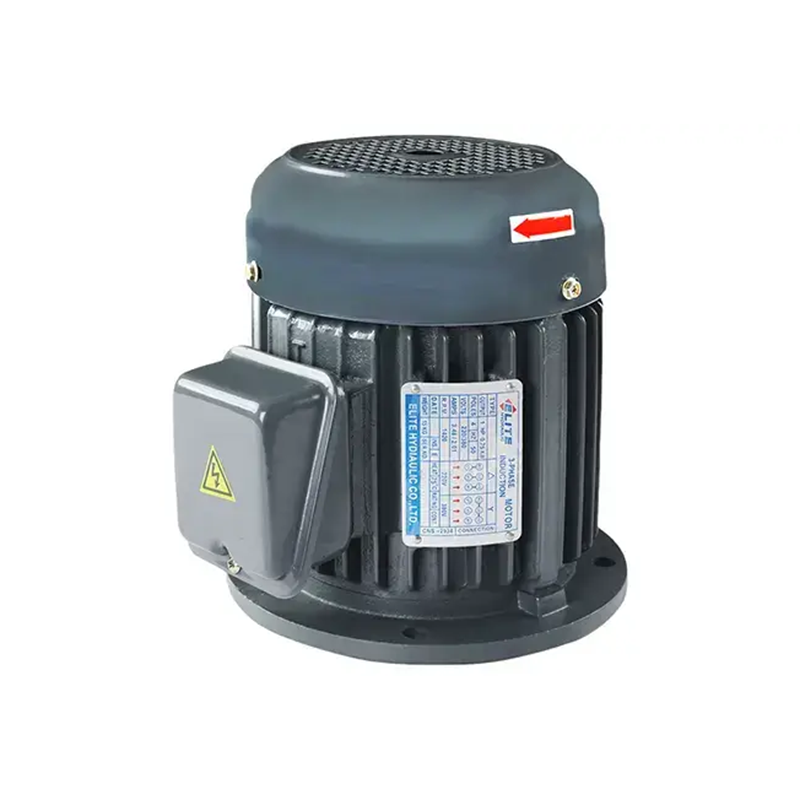

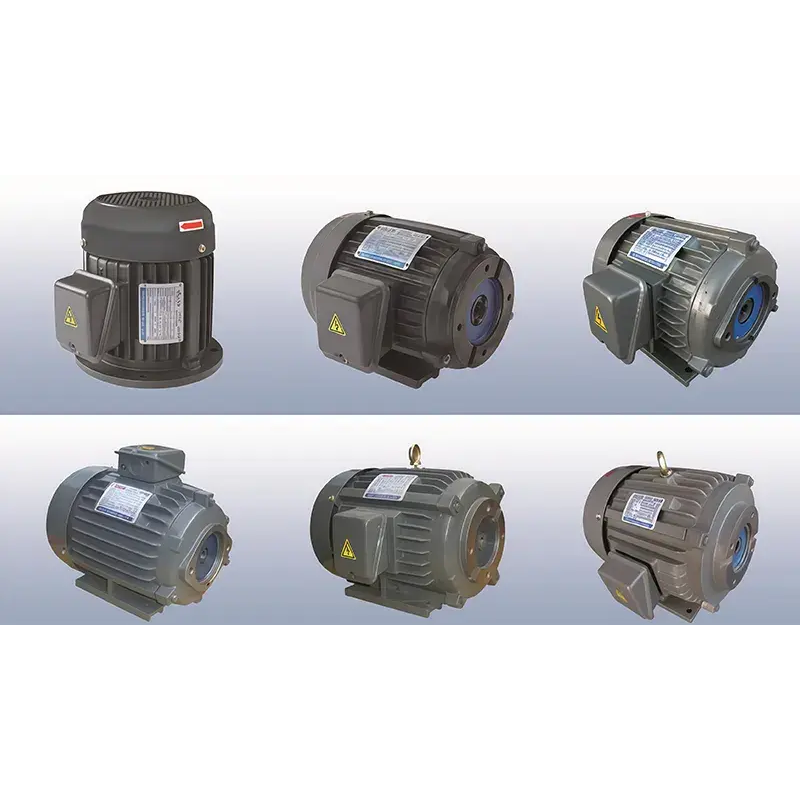

HSW series horizontal hydraulic special motor

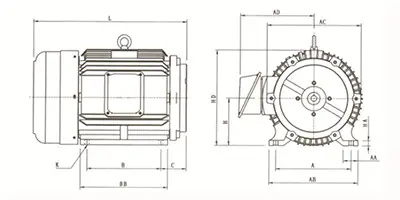

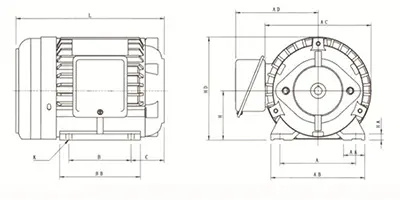

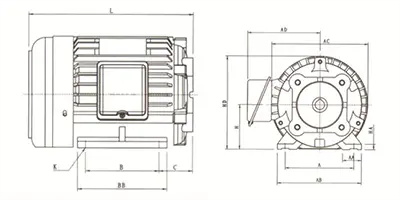

4P		6P	Frame number	Number of phases	Drawing number	A	AA	AB	AC	AD	B	BB	C	H	HA	HD	K	L	Net weight(kg)
1/2		1/4	80	Three		125	35	155	175	138	100	130	51	80	10	170	10	230	13
1		1/2	80	Three		125	35	155	175	138	100	130	53.5	80	10	170	10	235	15.5
2		1	90L	Three		140	40	175	196	147	125	156	52	90	11	190	12	270	23.5
3		2	100L	Three		160	40	196	219	162	140	177	65	100	12	210	12	303	31.5
5		3	112M	Three		190	40	228	235	164	140	172	57.5	112	13	230	12	290	38.5
71/2		5	132S	Three		216	45	250	268	191	140	175	77	132	16	266	12	345	60
10		71/2	132M	Three		216	45	250	268	191	178	213	75	132	16	266	12	378	70
15		10	160M	Three		254	50	300	318	253	210	250	87	160	18	320	14	479	115
20		15	160L	Three		254	50	300	318	253	254	300	87	160	18	320	14	523	140
25	30	20	180MC	Three		279	85	356	354	303	241	300	105	180	24	360	15	547	180/220
40		2530	180LC	Three		279	85	356	354	303	279	330	105	180	24	360	15	585	240
1/2			80	Single		125	35	155	175	138	100	130	53.5	80	10	170	10	265	15
1			90L	Single		140	40	175	196	155	125	157	52	90	12	190	10	290	24
2			90L	Single		140	40	175	196	155	125	157	64	100	12	190	10	300	28
3			112M	Single		190	45	228	228	174	140	175	73.5	112	12	230	12	385	425
5			112M	Single		190	45	224	245	185	140	175	95	112	14	230	12	420	48

Hydraulic special motor

Hydraulic special motors are motors designed specifically to drive hydraulic pumps. They play an important role in the industrial field, especially in hydraulic systems that require precise control and powerful power output.

Features

Inner shaft design: The hydraulic special motor adopts an inner shaft structure, which can be directly matched with the hydraulic pump without the need for additional couplings, simplifying installation, saving space, and reducing noise and heat.

High-precision fit: The mating surfaces of the motor and pump are processed with high precision to ensure coaxiality, which not only improves efficiency but also reduces maintenance requirements.

Simple and efficient structure: specially optimized for hydraulic pumps, with simple structural design, high operating efficiency, low noise, and suitable for long-term stable work.

Application areas

Widely used: widely used in hydraulic systems in automobiles, engineering machinery, machine tools, mining, woodworking, cold presses, punching machines, agricultural machinery and other fields as a power source.

Hydraulic system drive: In the boom joints of construction machinery such as excavators and loaders, although the final actuator is a hydraulic cylinder, its power source is a hydraulic pump driven by a special hydraulic motor.

Precision control occasions: CNC hydraulic presses are driven by servo motors to achieve precise control. They are suitable for tooling pressing in motors, auto parts, home appliances, and electronic industries, as well as pressure constant pressure systems, testing systems, etc.

Manufacturing pressing and forming: In the imprinting, forming, shallow drawing, shaping and pressure assembly of metal or non-metal parts, hydraulic special motors provide stable power.

Combination with hydraulic system: The combination of hydraulic special motor and hydraulic pump is a key component in modern industrial automation. They control and drive various mechanical equipment by converting electrical energy into hydraulic energy. This combination can achieve a wide range of force and speed control, adapt to complex working environments and process requirements, and is an indispensable part of heavy industry and precision manufacturing.
