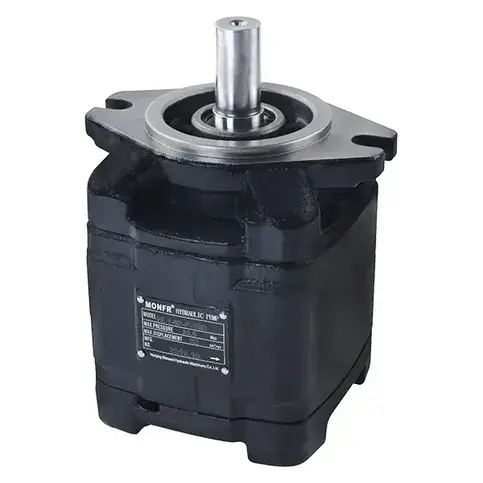

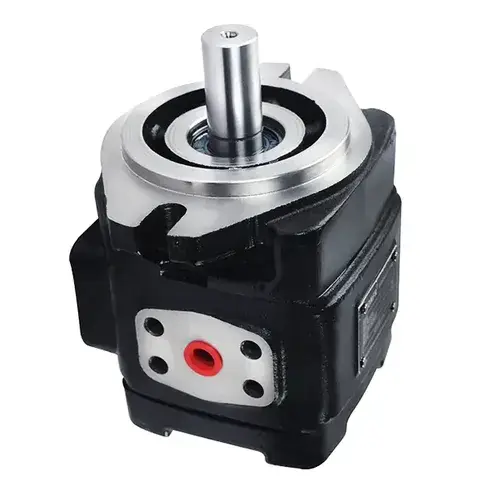

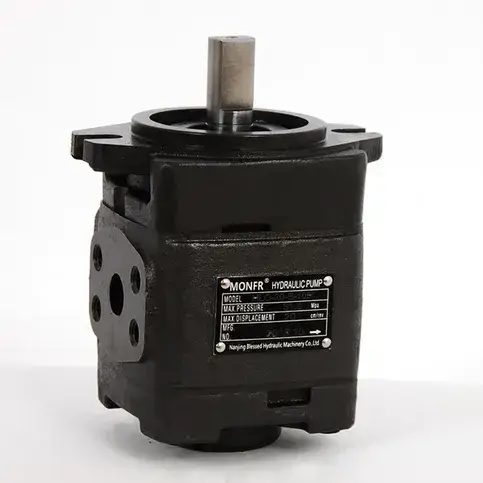

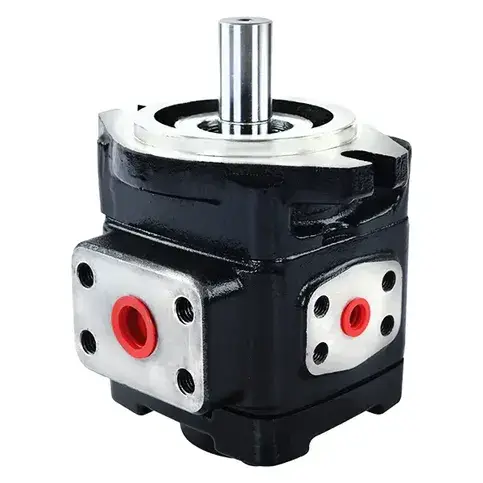

HL series internal gear single pump

Using axial and radial pressure compensation design, high volumetric efficiency can be maintained even at low rotation speed and low viscosity.
Ultra-low noise, using high-strength cast iron and a unique internal sound-absorbing design to make the noise even lower.
The flow and pressure fluctuations are extremely small, and stable flow and pressure output can be maintained at low speeds.
High pressure design, the maximum operating pressure can reach 35MPa.
The speed range is wide, and the maximum speed can reach 3600r/min.
Good oil absorption properties.
Insensitive to oil contamination and long service life.
Compact structure.

Availability:

Quantity:



Inquire Add to Basket

Specification parameter table

serial number	Specification	Displacement M1/r	Working pressure (bar)		Speed range r/min		Weight(kg)
serial number	Specification	Displacement M1/r	Rated	maximum pressure	maximum	smallest	Weight(kg)
HLQ	3.5	3.6	31.5	35	3600	400	4
	5	5.2	31.5	35	3600	400	4.2
	6.3	64	31.5	35	3600	400	4.4
	8	8.2	31.5	35	3600	400	4.6
	10	10.2	31.5	35	3600	400	4.8
	13	13.3	31.5	35	3000	600	4.9
	16	16.0	31.5	35	3000	600	5.2
	20	20.0	25	30	3000	600	5.6
HL1	25	25.3	31.5	35	3000	200	14.5
	32	32.7	31.5	35	3000	200	15
	40	40.1	31.5	35	3000	200	16
	50	50.7	31.5	35	3000	200	17
	63	63.7	25	30	3000	200	18.5
HL2	80	81.4	31.5	35	3000	200	43.5
	100	100.2	31.5	35	3000	200	45.5
	125	125.3	31.5	35	3000	200	48
	160	162.8	21	26	3000	200	52

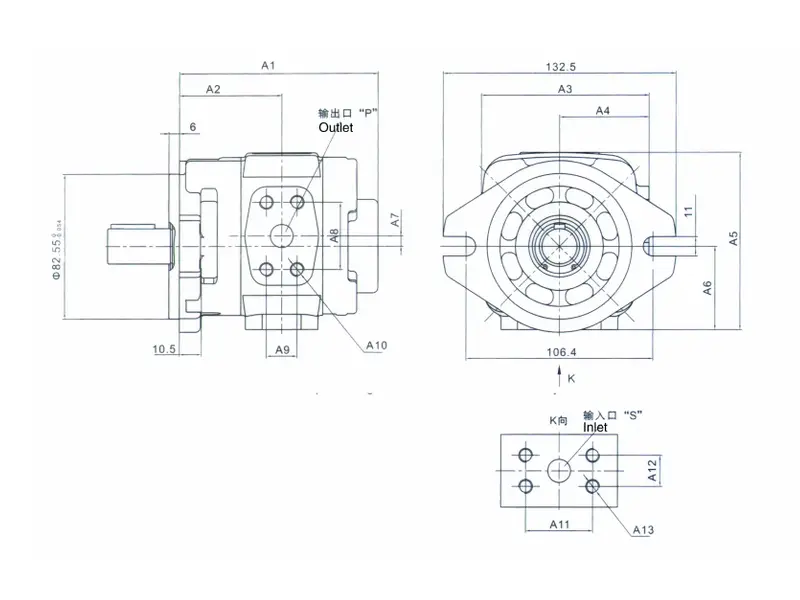

HLO: Specification parameter list

Pump model	A1	A2	A3	A4	A5	A6	A7	P	A8	A9	A10	S	A11	A12	A13
HL0-3.5	101.5	52.5	96	51	100.6	47	5.8	Ø9	38.1	17.5	M8 depth 13	Ø14	38.1	17.5	M8 depth 13
HL0-05	105.5	54.5	96	51	100.6	47	5.8	Ø11	38.1	17.5	M8 depth 13	Ø14	38.1	17.5	M8 depth 13
HL0-6.3	108.5	56	96	51	100.6	47	5.8	Ø11	38.1	17.5	M8 depth 13	Ø19	47.6	22.2	M10 depth 15
HL0-08	113	58.25	96	51	100.6	47	5.8	Ø13	38.1	17.5	M8 depth 13	Ø19	47.6	22.2	M10 depth 15
HL0-10	118	60.75	96	51	100.6	47	6.2	Ø13	38.1	17.5	M8 depth 13	Ø21	52.4	26.2	M10 depth 15
HL0-13	117.5	59.25	99.6	49.8	106.6	55.8	6.2	Ø13	38.1	17.5	M8 depth 13	Ø19	52.4	26.2	M10 depth 15
HL0-16	123	62	99.6	49.8	106.6	55.8	6.2	Ø13	38.1	17.5	M8 depth 13	Ø19	52.4	26.2	M10 depth 15
HL0-20	131	66	99.6	49.8	106.6	55.8	6.2	Ø18	47.6	22.2	M10 depth 15	Ø26	58.7	30.2	M10 depth 15

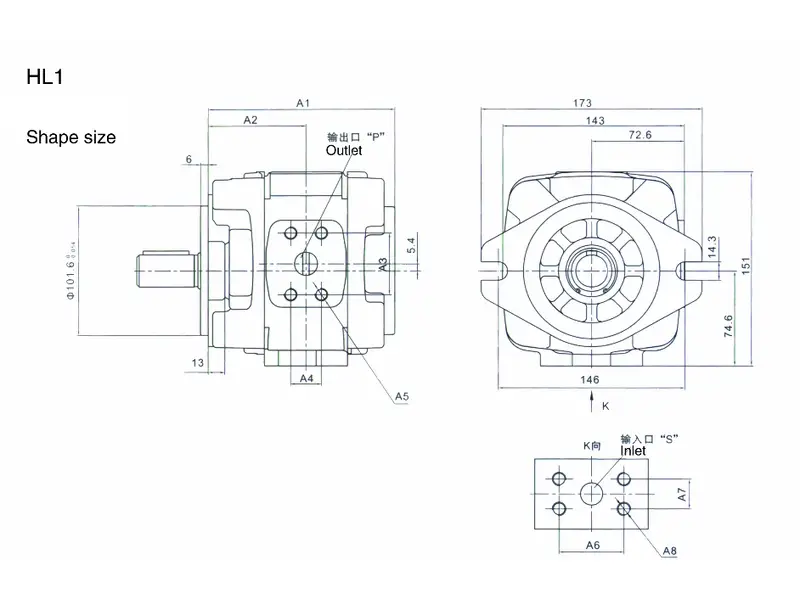

HL1i: Specification parameter list

Pump model	A1	A2	P	A3	A4	A5	S	A6	A7	A8
HL1-25	139	73	Ø18	47.6	22.2	M10 depth 17	Ø32	58.7	30.2	M10 depth 17
HL1-32	146	76.5	Ø18	47.6	22.2	M10 depth 17	Ø32	58.7	30.2	M10 depth 17
HL1-40	153	80	Ø20	52.4	26.2	M10 depth 17	Ø32	58.7	30.2	M10 depth 17
HL1-50	163	85	Ø20	52.4	26.2	M10 depth 17	Ø32	58.7	30.2	M10 depth 17
HL1-63	177	92	Ø20	52.4	26.2	M10 depth 17	Ø32	58.7	30.2	M10 depth 17

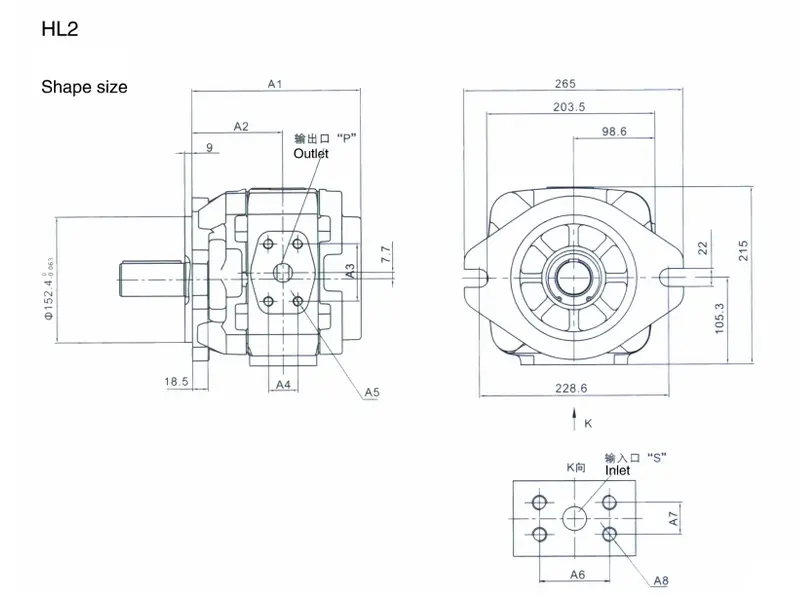

HL2: Specification parameter table

Pump model	A1	A2	P	A3	A4	A5	S	A6	A7	A8
HL2-80	204	109.5	Ø32	69.9	35.7	M12 depth 20	Ø50	77.8	42.9	M12 depth 20
HL2-100	213	114	Ø32	69.9	35.7	M12 depth 20	Ø50	77.8	42.9	M12 depth 20
HL2-125	225	120	Ø38	79.4	36.5	M16 depth 25	Ø63.5	88.9	50.8	M12 depth 20
HL2-160	243	129	Ø38	79.4	36.5	M16 depth 25	Ø76	106.4	61.9	M16 depth 25
