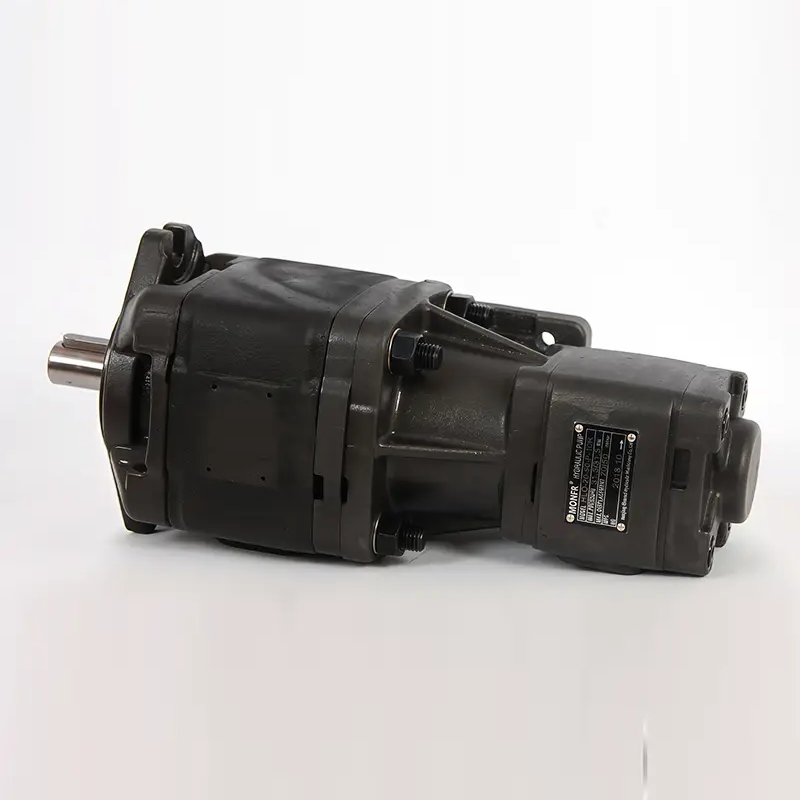

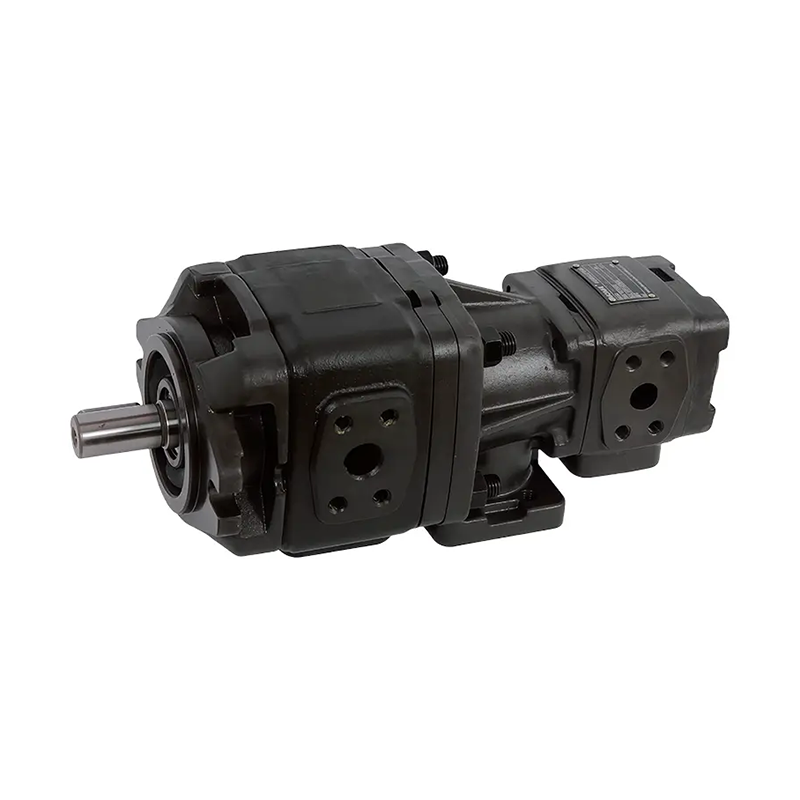

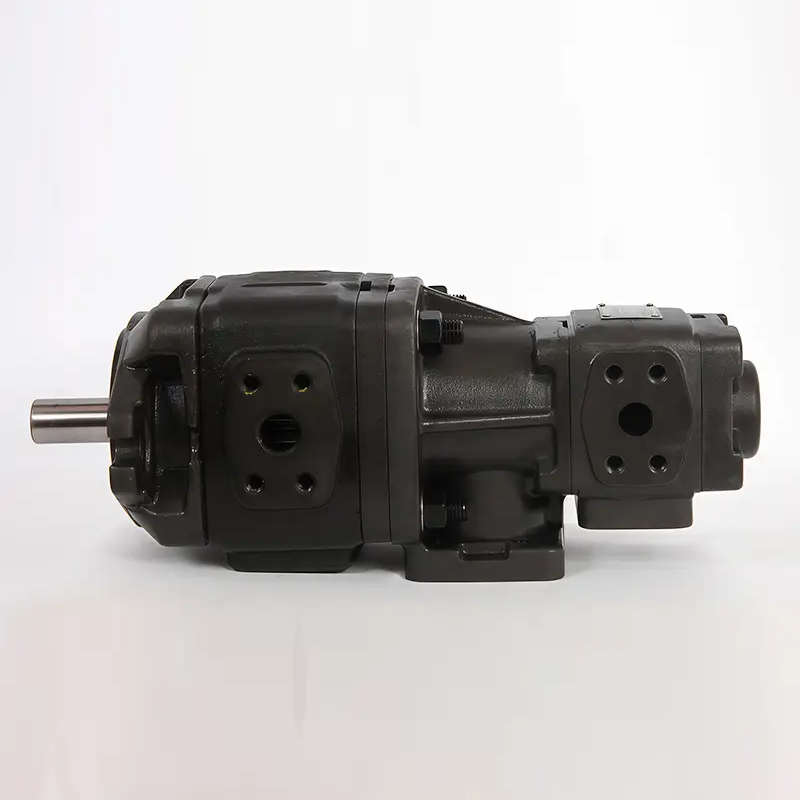

HL series HL series internal gear double pump

The duplex pump is composed of two single pumps assembled in series, with a common oil inlet and two oil outlets that can deliver to two independent circuits. Various displacements are available in series combinations of two pumps.

Availability:

Quantity:



Inquire Add to Basket

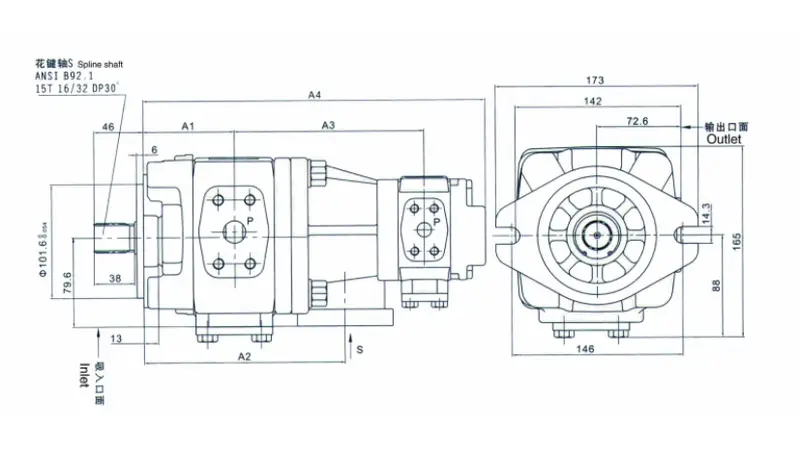

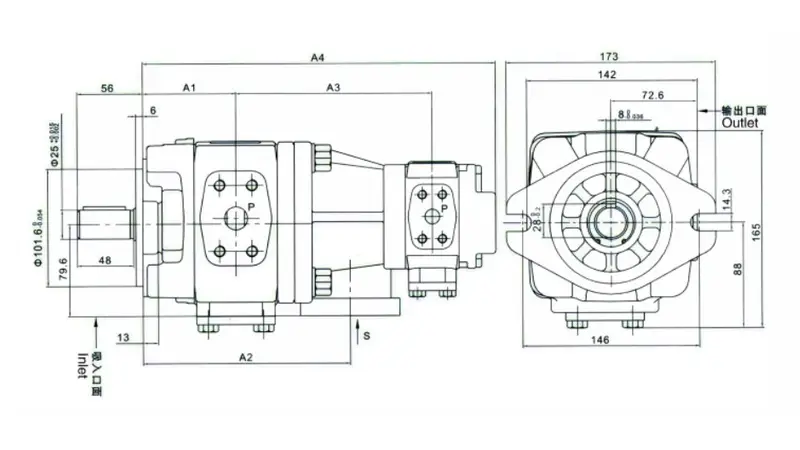

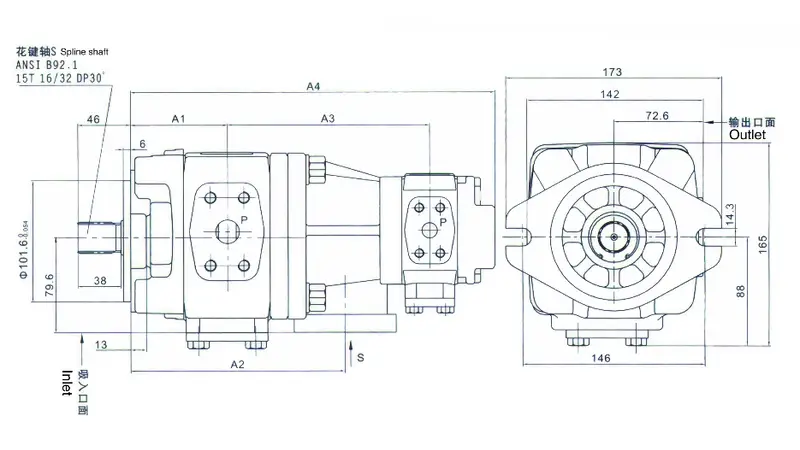

HL10 (10R): Specification parameter table (unit: mm)

Pump model	A1	A2	Rear pump specifications
			13		16			20
			A3	A4	A3	A4	A3		A4
HL10-25-※-P-10R	73	164.5	165.8	297	168.5	302.5	172.5		310.5
HL10-32-※-P-10R	76.5	171.5	169.3	304	172	309.5	176		317.5
HL10-40-※-P-10R	80	178.5	172.8	311	175.5	316.5	179.5		324.5
HL10-50-※-P-10R	85	188.5	177.8	321	180.5	326.5	184.5		334.5
HL10-63-※-P-10R	92	202.5	184.8	335	187.5	340.5	191.5		348.5

Internal gear double pump

Provide you with professional solutions

Popular Products

Hydraulic special motor

Medium pressure variable capacity vane oil pump

Product Classification

Contact Us

Tel: +86-25-56226999

Mobile: +86-18052086699
Email: mfyy888@163.com

Contact address: No1,Suotang Road,Baima Industrial Zone,Lishui District,Nanjing Jiangsu,China

Pump model	A1	A2	Rear pump specifications
				3.5		05		6.3		08		10
			A3	A4	A3	A4	A3	A4	A3	A4	A3	A4
HL10-25-※-P-20R	73	164.5	159	281	161	285	162.5	288	164.8	292.5	167.3	297.5
HL10-32-※-P-20R	76.5	171.5	162.5	288	164.5	292	166	295	168.3	299.5	170.8	304.5
HL10-40-※-P-20R	80	178.5	166	295	168	299	169.5	302	171.8	306.5	174.3	311.5
HL10-50-※-P-20R	85	188.5	171	305	173	309	174.5	312	176.8	316.5	179.3	321.5
HL10-63-※-P-20R	92	202.5	178	319	180	323	181.5	326	183.8	330.5	186.3	335.5

Pump model	A1	A2	Rear pump specifications
				25		32		40		50		63
			A3	A4	A3	A4	A3	A4	A3	A4	A3	A4
HL11-25-※-P-10R	73	168	175	314
HL11-32-※-P-10R	76.5	175	178.5	321	182	328
HL11-40-※-P-10R	80	182	182	328	185.5	335	189	342
HL11-50-※-P-10R	85	192	187	338	190.5	345	194	352	199	362
HL11-63-※-P-10R	92	206	194	352	197.5	359	201	366	206	376	213	390

Pump model	A1	A2	Rear pump specifications
			25		32			40			50			63
			A3	A4	A3	A4	A3		A4	A3		A4	A3		A4
HL21-80-※-P-10R	109.5	249.5	241.5	417	245	424	248.5		431	253.5		441	260.5		455
HL21-100-※-P-10R	114	258.5	246	426	249.5	433	253		440	258		450	265		464
HL21-125-※-P-10R	120	270.5	252	438	255.5	445	259		452	264		462	271		476
HL21-160-※-P-10R	129	288.5	261	456	264.5	463	268		470	273		480	280		494

Pump model	A1	A2	Rear pump specifications
			80		100		125		160
			A3	A4	A3	A4	A3	A4	A3	A4
HL22-80-※-P-10R	109.5	249.5	270	474
HL22-100-※-P-10R	114	258.5	274.5	483	279	492
HL22-125-※-P-10R	120	270.5	280.5	495	285	504	291	516
HL22-160-※-P-10R	129	288.5	289.5	513	294	522	300	534	309	552
