HGP series high pressure gear pump

Oil seal accessories made of Viton can withstand high temperature operations.
Special oil-free bearing design allows operation under high pressure.
It can rotate forward and reverse.
Availability:
Quantity:
Inquire Add to Basket

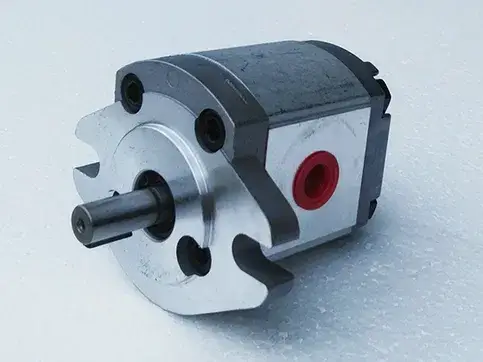

HGP-1A (1).png

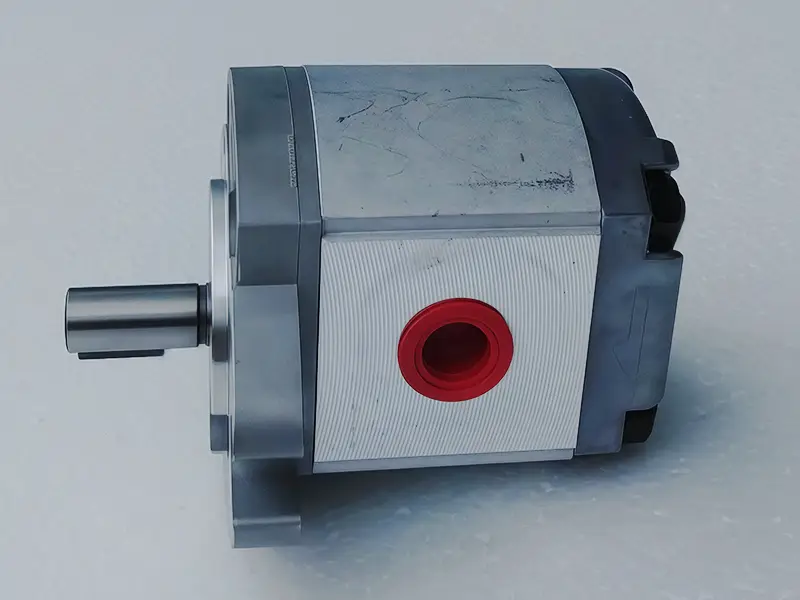

HGP-1A (22).png

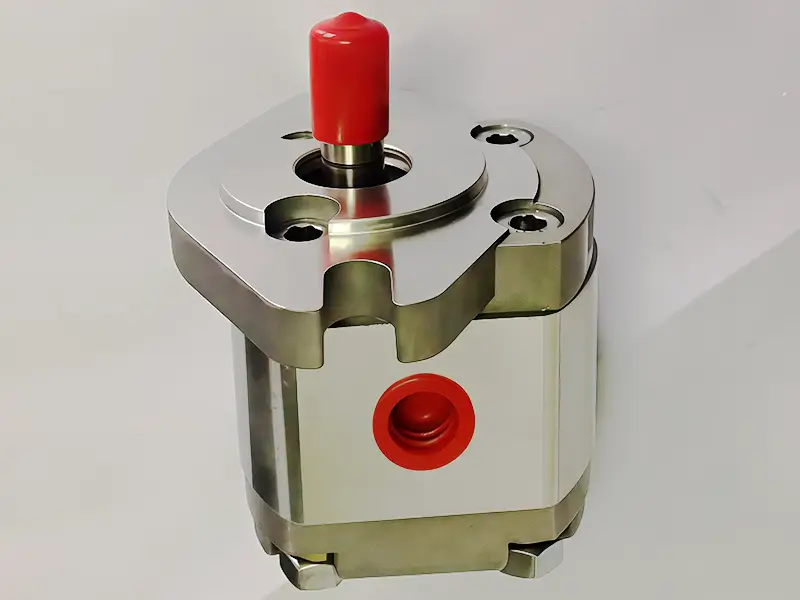

HGP-1A (3).png

HGP-1A: Specification parameter list

model

Oil displacement (cc/rev)

Pressure(bar)

Speed ​​range r/min

Weight(kg)

work pressure

maximum pressure

Rated

smallest

maximum

HGP-1A-F1

1

210

250

1800

1000

4500

1

HGP-1A-F2

2

210

250

1800

600

4500

1.05

HGP-1A-F3

3

210

250

1800

600

4500

1.15

HGP-1A-F4

4

210

250

1800

600

4500

1.18

HGP-1A-F5

5

210

250

1800

600

3200

1.2

HGP-1A-F6

6

210

250

1800

600

3200

1.3

HGP-1A-F8

7,8

175

210

1800

600

3200

1.4

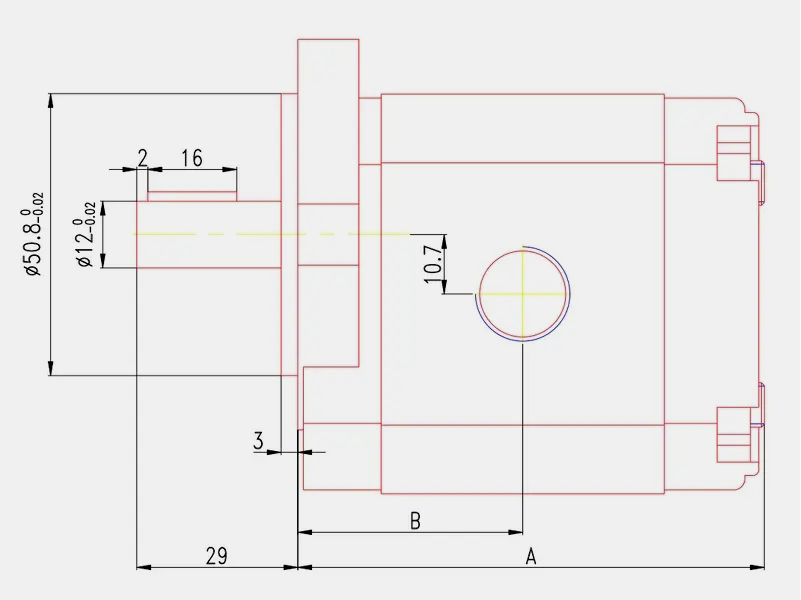

Picture 1.png

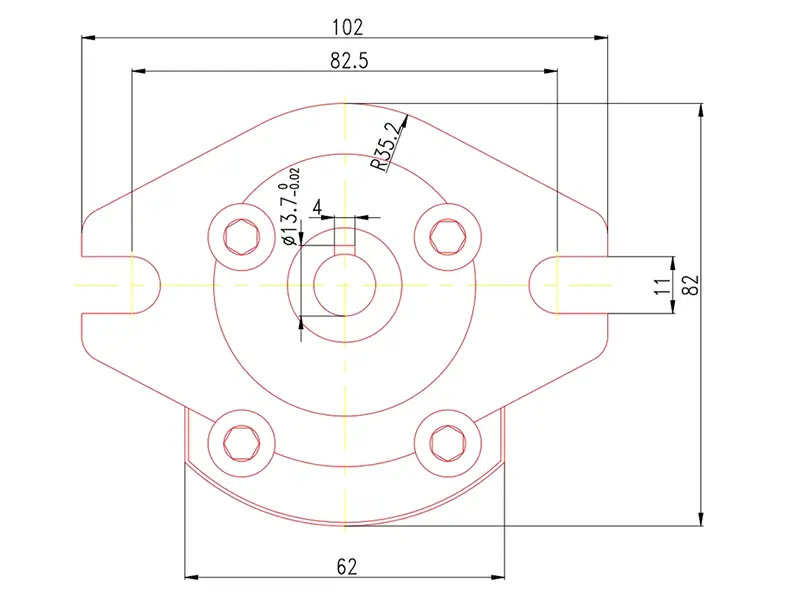

Picture 2.png

Size chart

model

A(mm)

B(mm)

Oil suction port-In

Oil outlet-Out

HGP-1A-F1*

69.5

33.5

3/8"PT

3/8"PT

HGP-1A-F2*

72

34.8

3/8"PT

3/8"PT

HGP-1A-F3*

77.5

37.5

3/8"PT

3/8"PT

HGP-1A-F4*

79.5

38.5

3/8"PT

3/8"PT

HGP-1A-F5*

83.5

40.5

3/8"PT

3/8"PT

HGP-1A-F6*

87.5

42.5

3/8"PT

3/8"PT

HGP-1A-F8*

93.5

45.5

1/2"PT

3/8"PT

Model description

shape

HGP-1A

Installation type

L: Foot type
F: Flange type

Oil displacement (cc/rev)

1:1
5:5

2:2
6:6

3:3
8:8

4:4

direction of rotation

R: clockwise
L: counterclockwise

Spindle type

X: Parallel key
Y: Torx key

Flange type

2B: SAE2 hole type
4BD: DIN4 hole type
4DE: European 4 hole type

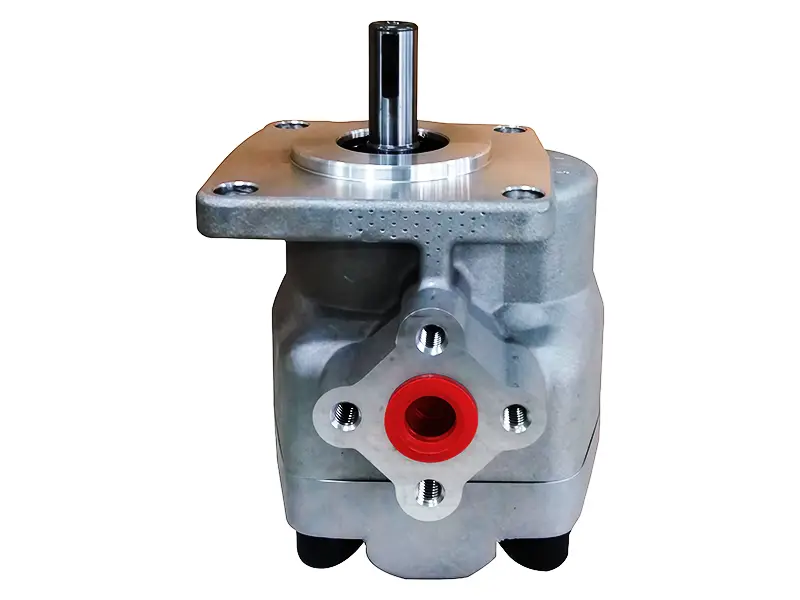

HGP-2A (1).png

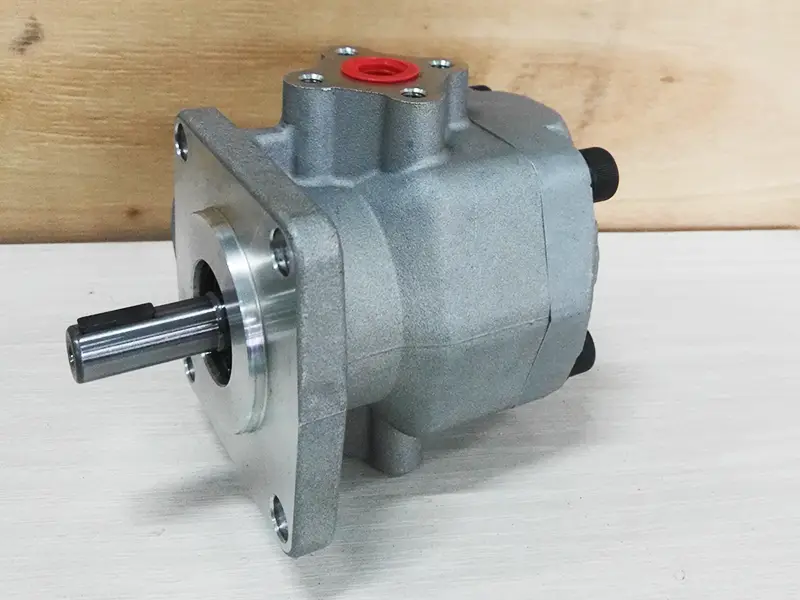

HGP-2A (2).png

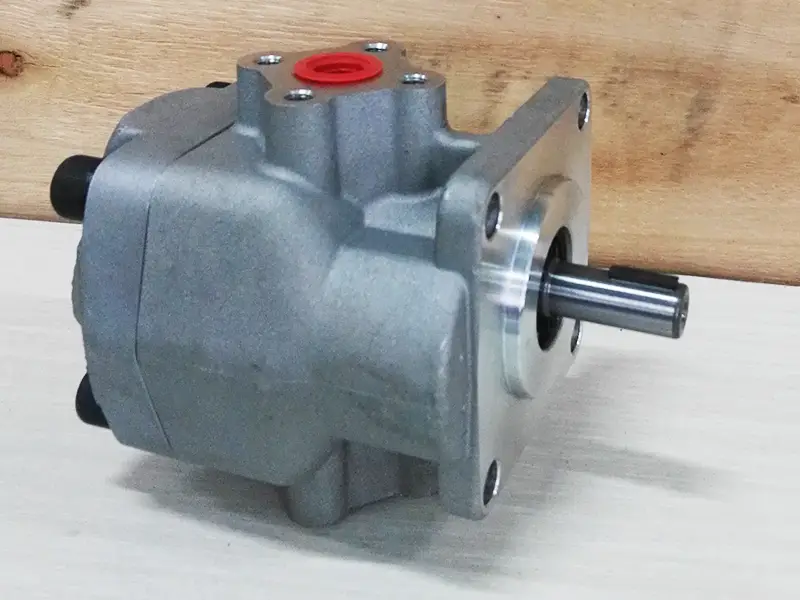

HGP-2A (3).png

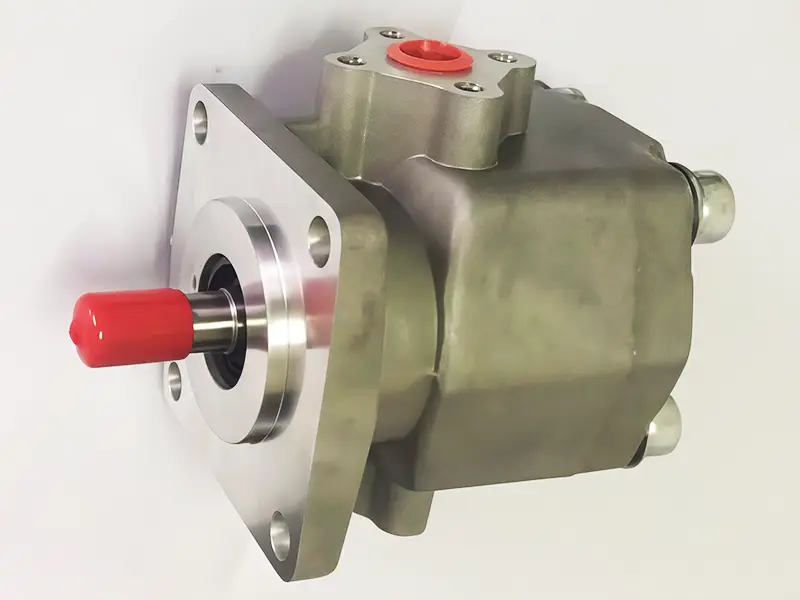

HGP-2A (4).png

HGP-2A: Specification parameter list

model

Oil displacement (cc/rev)

Pressure (bar)

Speed ​​range r/min

Weight(kg)

work pressure

maximum pressure

Rated

smallest

maximum

HGP-2A-*2*

2

210

250

1800

900

5000

1.69

HGP-2A-*3*

3

210

250

1800

850

5000

1.7

HGP-2A-*4*

4

210

250

1800

800

4500

1.71

HGP-2A-*5*

5

210

250

1800

700

3500

1.71

HGP-2A-*6*

6

210

250

1800

700

3500

1.72

HGP-2A-*8*

7.5

210

250

1800

600

3000

1.74

HGP-2A-*9*

9

210

250

1800

550

2500

1.74

HGP-2A-*11*

10.5

210

250

1800

500

2000

1.74

HGP-2A-*12*

12

175

210

1800

500

2000

1.76

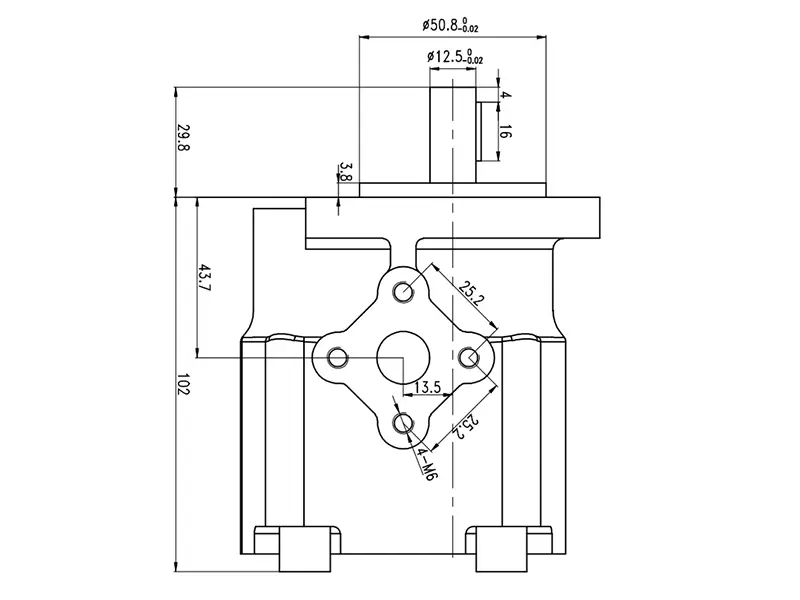

Picture 3.png

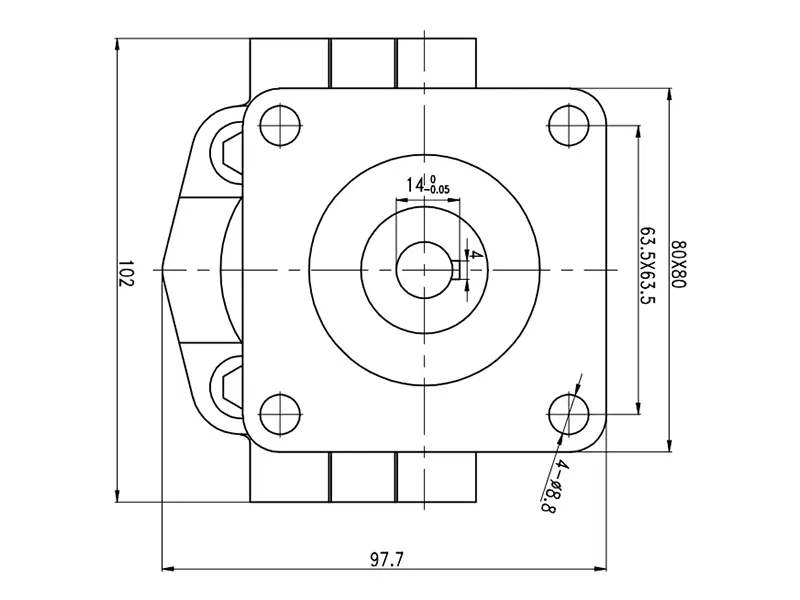

Picture 4.png

Model description

shape

HGP-2A

Installation type

L: Foot type
F: Flange type

Oil displacement (cc/rev)

2:2
6:6
12:12

3:3
8:8

4:4
9:9

5:5
11:11

direction of rotation

R: clockwise
L: counterclockwise

Spindle type

X: Parallel key
Y: Torx key

Flange type

4BJIS4 hole type

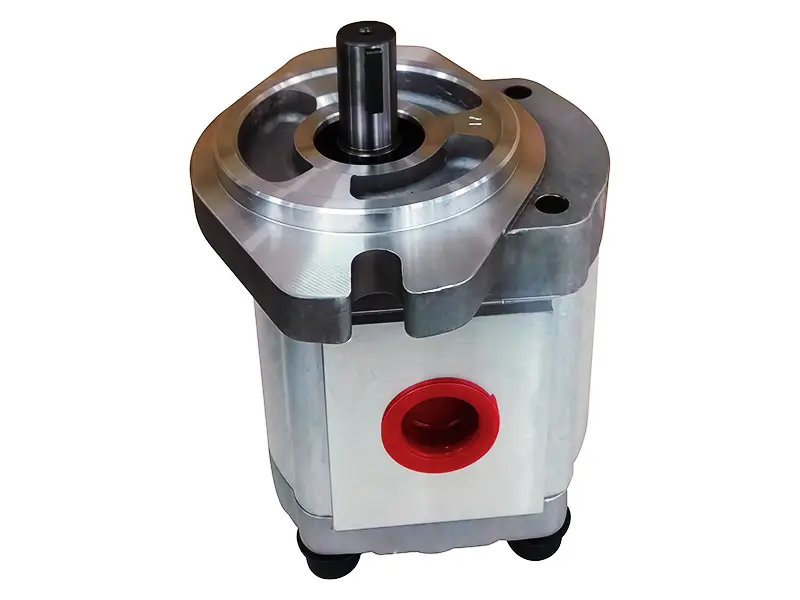

HGP-3A (1).png

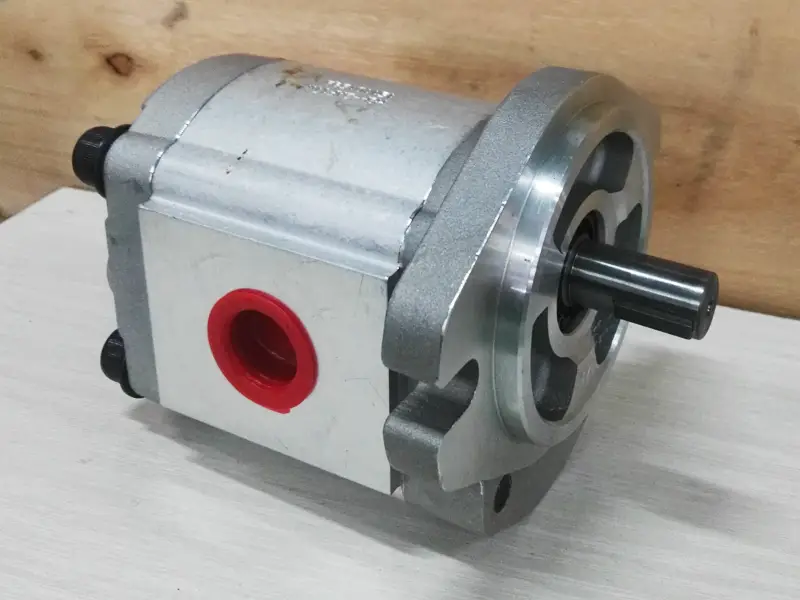

HGP-3A (2).png

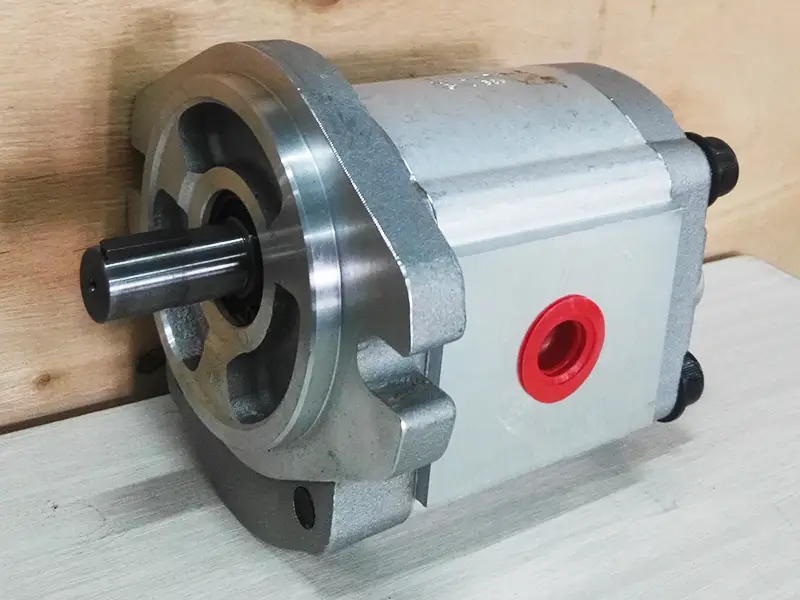

HGP-3A (3).png

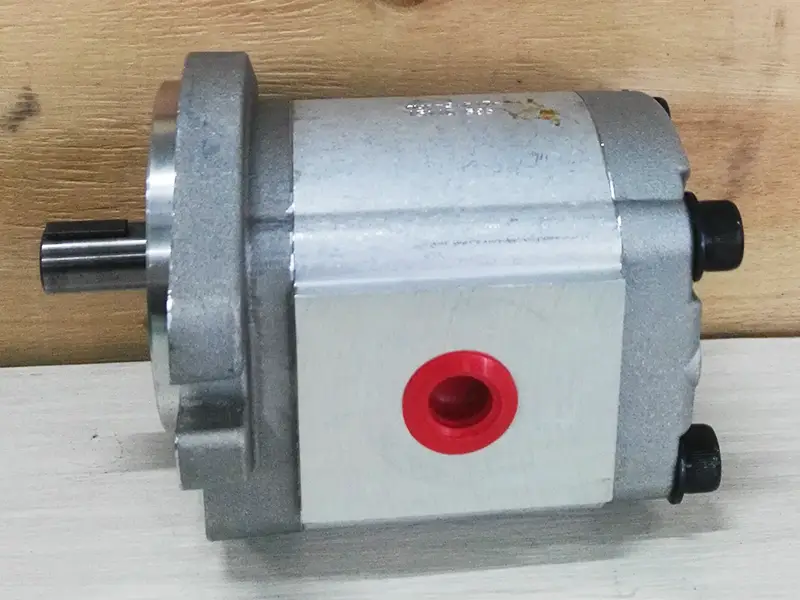

HGP-3A (4).png

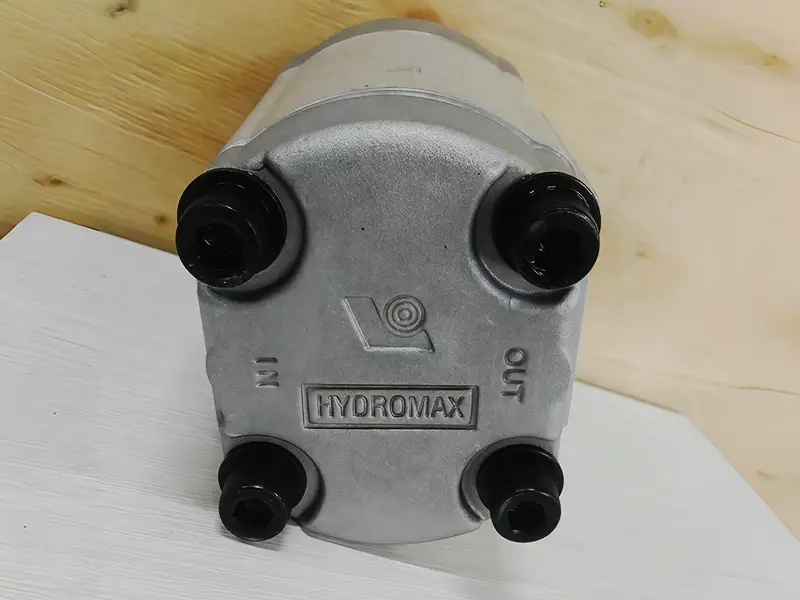

HGP-3A (5).png

HGP-3A: Specification parameter list

model

Oil displacement (cc/rev)

Pressure(bar)

Speed ​​range r/min

Weight(kg)

work pressure

maximum pressure

Rated

smallest

maximum

HGP-3A-*6*

6

210

250

1800

700

3000

2.32

HGP-3A-*8*

8

210

250

1800

700

3000

2.4

HGP-3A-*11*

11

210

250

1800

600

3000

2.53

HGP-3A-*13*

13

210

250

1800

600

3000

2.6

HGP-3A-*14.3*

14.3

210

250

1800

500

3000

2.69

HGP-3A-*15.6*

16.5

210

250

1800

500

3000

2.81

HGP-3A-*19.2*

19.2

210

250

1800

500

3000

2.92

HGP-3A-*23*

23

210

250

1800

500

3000

3.11

HGP-3A-*25*

25

175

210

1800

500

3000

3.2

HGP-3A-*28*

28

175

210

1800

500

3000

3.29

HGP-3A-*30*

30

175

210

1800

500

3000

3.38

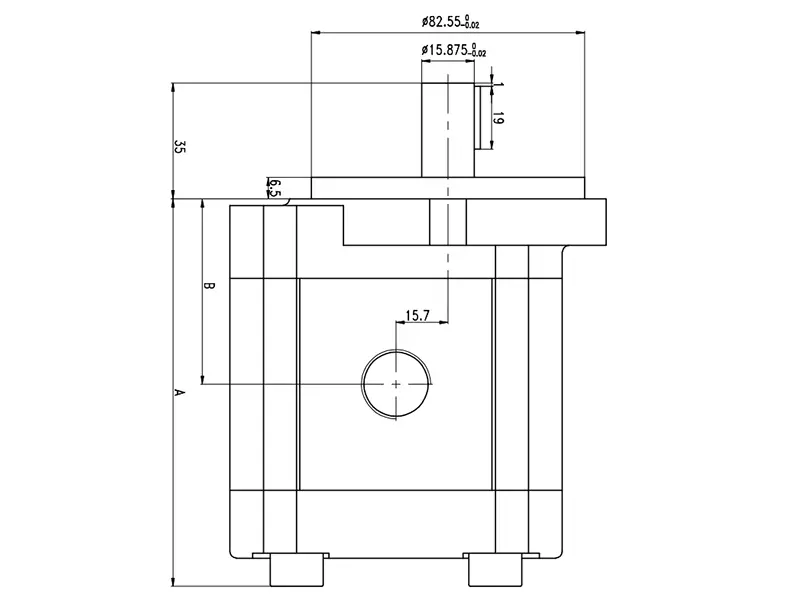

Picture 5.png

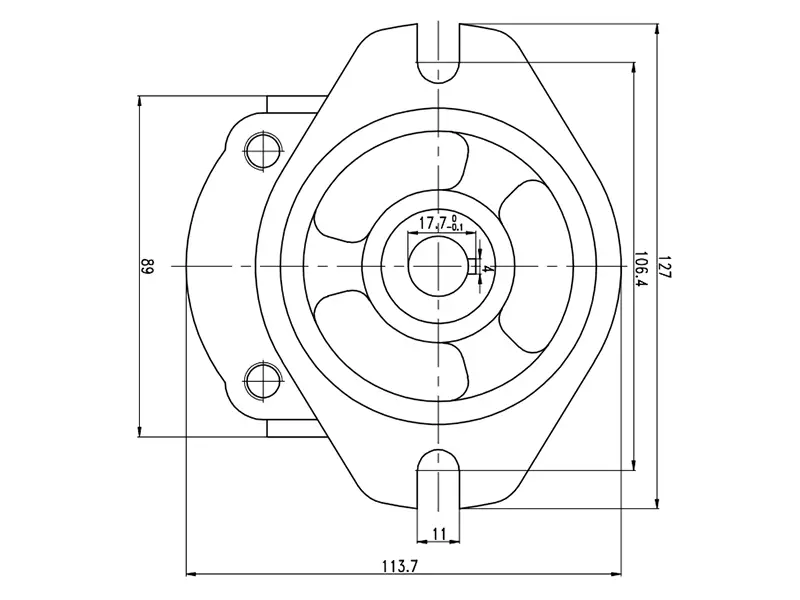

Picture 6.png

Size chart

model

A(mm)

B(mm)

Oil suction port-In

Oil outlet-Out

HGP3A-F2*

97.4

46.7

3/4"PT

1/2"PT

HGP3A-F3*

99

47.5

3/4"PT

1/2"PT

HGP3A-F4*

101

48.5

3/4"PT

1/2"PT

HGP3A-F6*

105

50

3/4"PT

1/2"PT

HGP3A-F8*

109

51.5

3/4"PT

1/2"PT

HGP3A-F11*

113

54

3/4"PT

1/2"PT

HGP3A-F13*

117

56

3/4"PT

1/2"PT

HGP3A-F17*

123

59

3/4"PT

1/2"PT

HGP3A-F19*

127

61

3/4"PT

1/2"PT

HGP3A-F23*

134

65

3/4"PT

1/2"PT

HGP3A-F25*

137

66

1"PT

3/4"PT

HGP3A-F28*

141

68

1"PT

3/4"PT

HGP3A-F30*

145

70

1"PT

3/4"PT

Model description

shape

HGP-3A

Installation type

L: Foot type
F: Flange type

Oil displacement
(cc/rev)

6:6
14:14
25:25

8:8
17:17
28:28

11:11
19:19
30:30

13:13
23:23

direction of rotation

R: clockwise
L: counterclockwise

Spindle type

X: Parallel key
Y: Torx key

Flange type

SAE2 hole type
