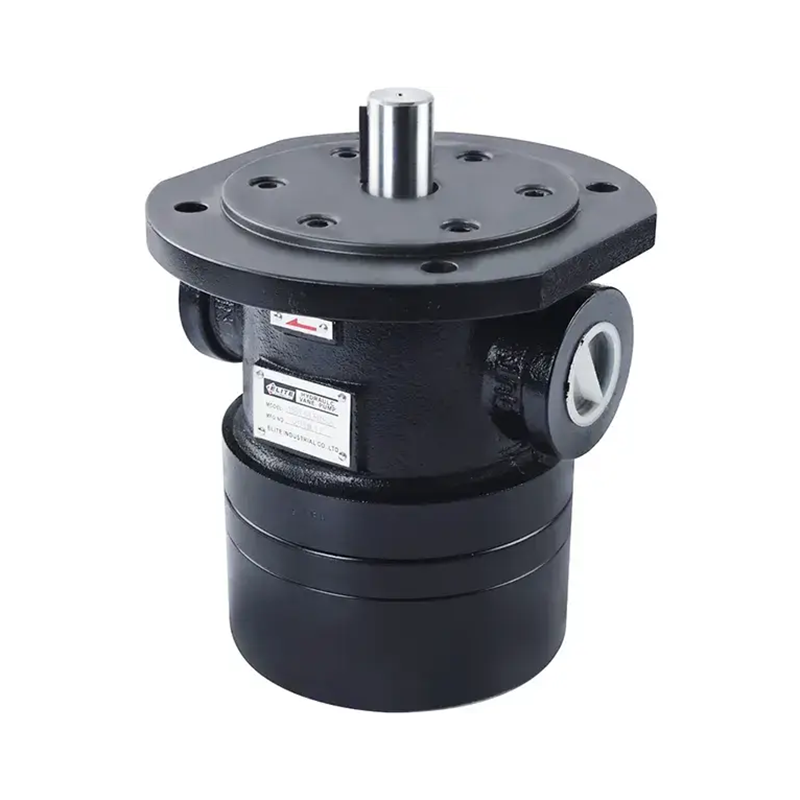

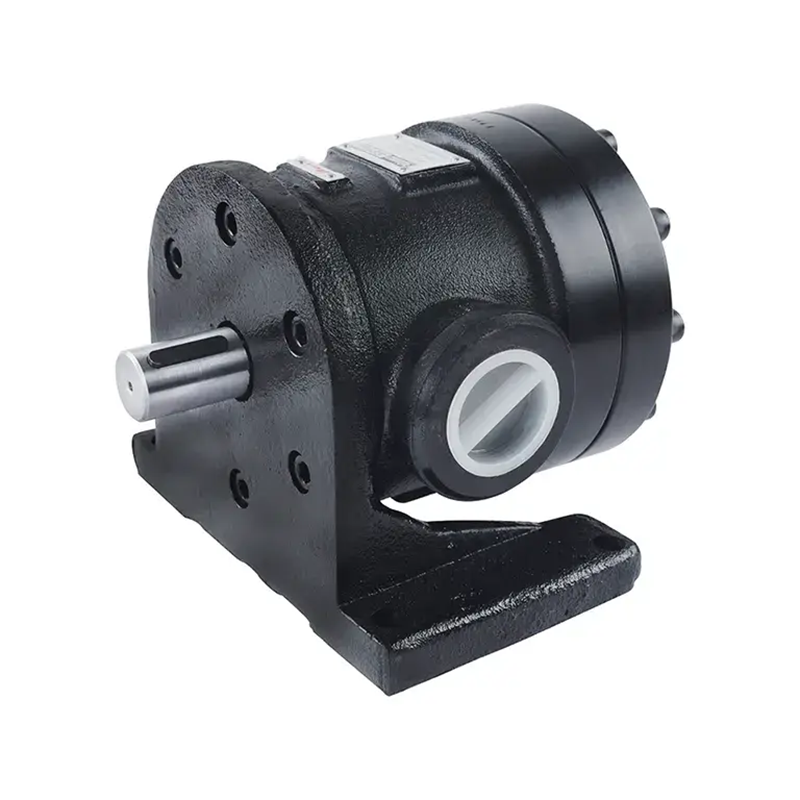

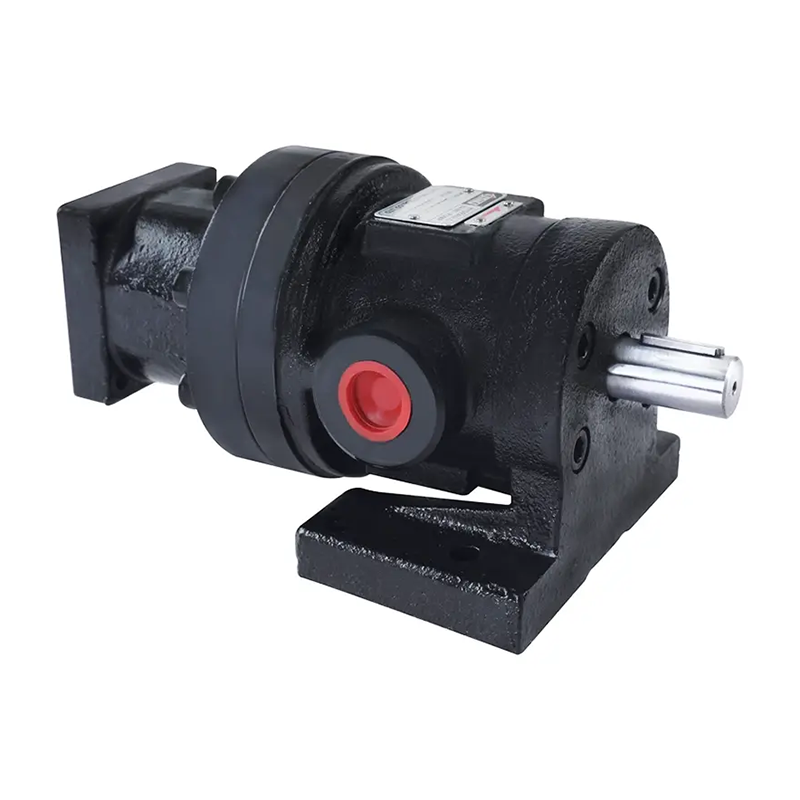

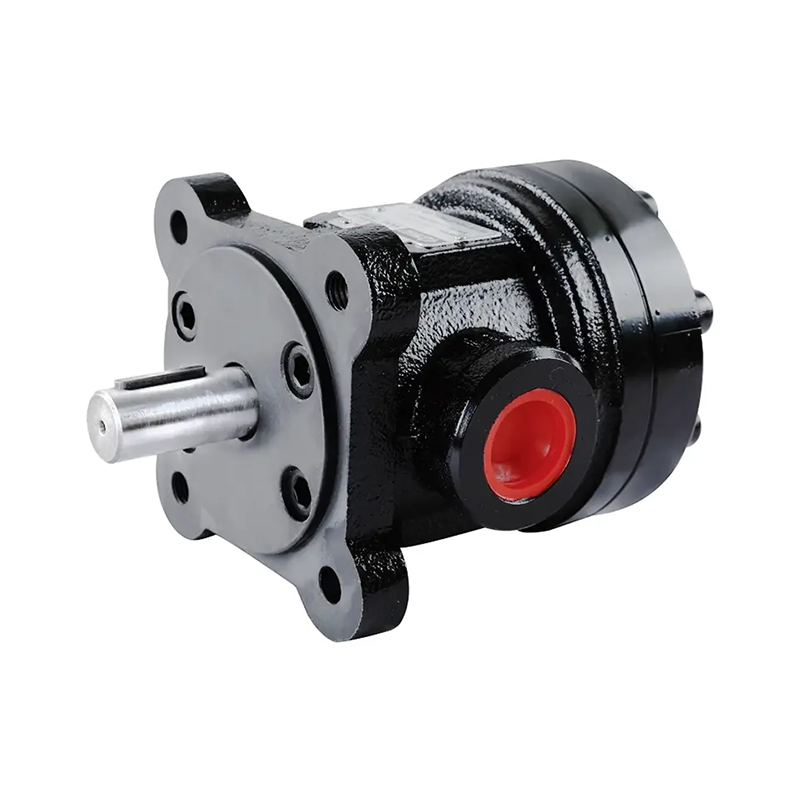

Fixed capacity vane oil pump & gear oil pump

A combination of a large-flow, low-noise quantitative vane pump and a small-flow gear pump is used to form a high and low pressure pump. A single motor is assembled into a high and low pressure circuit system to save power.

Availability:

Quantity:



Inquire Add to Basket

Product details

Specification parameter table

model	Ability to spit out (cc/rev)				maximum pressure kgf/c㎡	Rated speed(rpm)
model	1000rpm	1200rpm	1500rpm	1800rpm	maximum pressure kgf/c㎡	maximum	smallest
50T-07	—	8.2	10.3	12.5	70	1800	950
50T-12	12	14.4	18	21.6	70	1800	950
50T-14	14.6	17.5	21.7	26.1	70	1800	950
50T-17	17	20.3	25.5	31.5	70	1800	950
50T-20	20	23.8	29.8	36.7	70	1800	950
50T-23	23	27.6	34.5	41.4	70	1800	950
50T-26	26.2	31.4	39.3	47.2	70	1800	950
50T-30	30.1	3.1	45.2	54	70	1800	950
50T-36	36.2	41.4	54.3	64	70	1500	950
50T-40	41.5	49.4	62	74.5	70	1200	950
50T-43	43	51.6	—	—	70	1500	950
150T-48	48.3	57.9	72.4	86.9	70	1800	900
150T-61	61.5	73.8	92.2	110.7	70	1800	900
150T-75	75.5	90.6	113.2	135.9	70	1500	900
150T-94	94.2	113	141.3	168	70	1500	900
150T-116	116.3	139.6	174	—	70	1200	900
