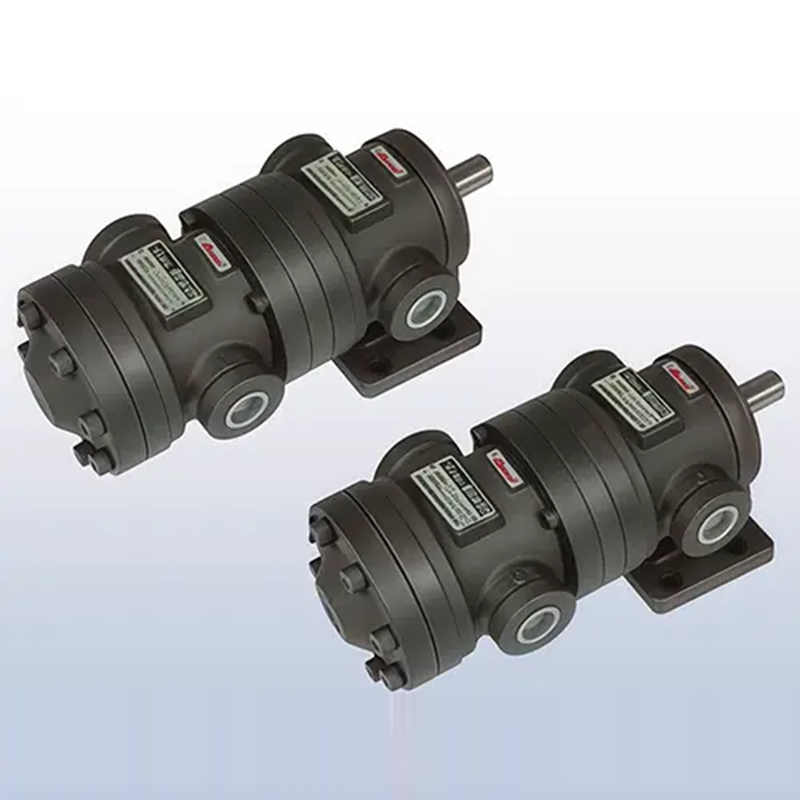

Duplex fixed capacity vane oil pump

This pump is designed with large flow, low noise, and high volumetric efficiency. This series of pumps is combined with a small flow high-pressure pump to form a high-low pressure pump, saving motor power; sharing the same axis and motor, saving space.

Availability:

Quantity:



Inquire Add to Basket

Product details

Specification parameter table

model	vane pump				Rated speed(rpm)
model	Maximum pressure (psi)	Ability to spit out (cc/rev)	Maximum pressure (psi)	Ability to spit out (cc/rev)	maximum	smallest
50T-07	3000	1~12	1000psi	7	1800	900
50T-12	3000	1~12	1000psi	12	1800	900
50T-14	3000	1~12	1000psi	14	1800	900
50T-17	3000	1~12	1000psi	17	1800	900
50T-20	3000	1~12	1000psi	20	1800	900
50T-23	3000	1~12	1000psi	23	1800	900
50T-26	3000	1~12	1000psi	26	1800	900
50T-30	3000	1~12	1000psi	30	1800	900
50T-36	3000	1~12	1000psi	36	1800	900
50T-40	3000	1~12	1000psi	40	1800	900
50T-43	3000	1~12	1000psi	43	1800	900
150T-48	3000	1~12	1000psi	48	1800	900
150T-61	3000	1~12	1000psi	61	1800	900
150T-75	3000	1~12	1000psi	75	1800	900
150T-94	3000	1~12	1000psi	94	1800	900
150T-116	3000	1~12	1000psi	116	1800	900
