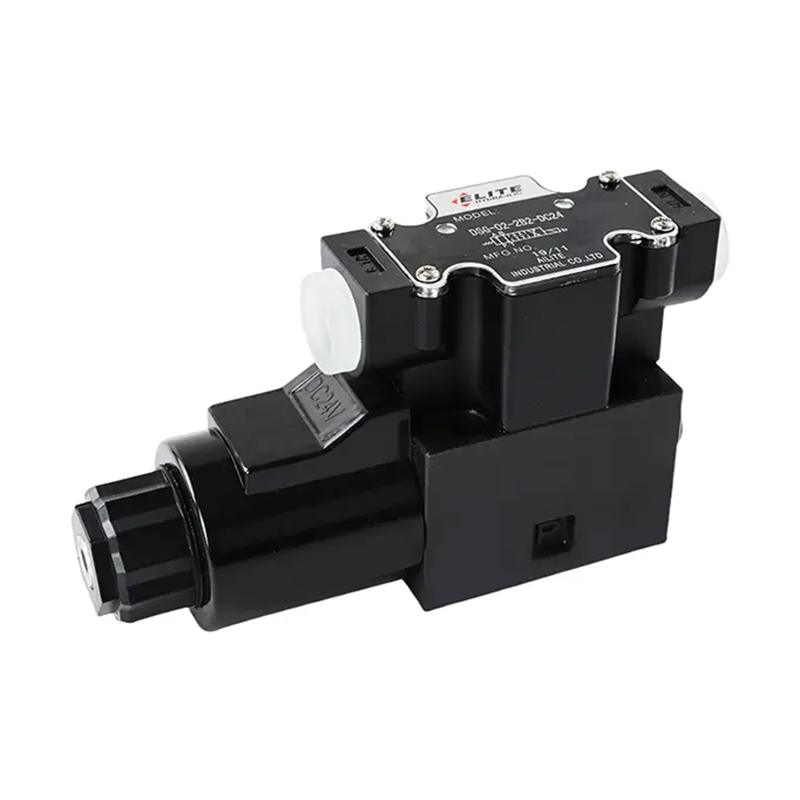

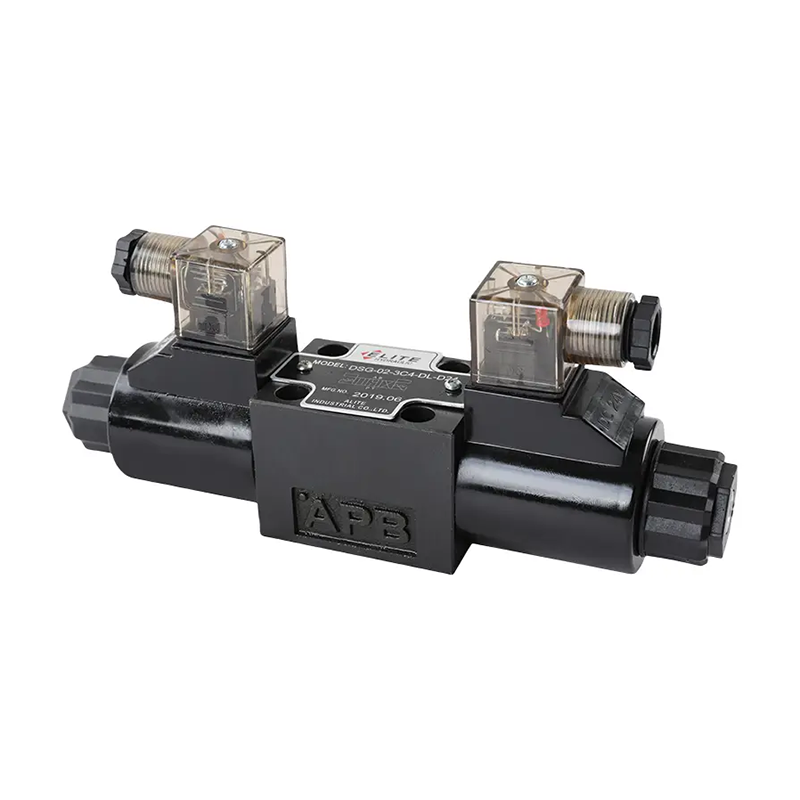

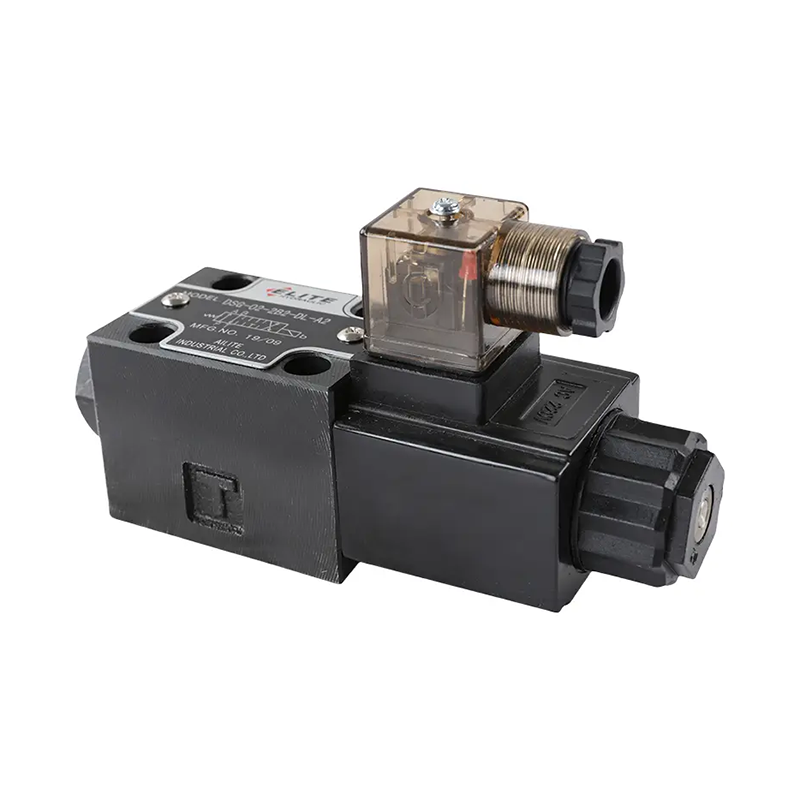

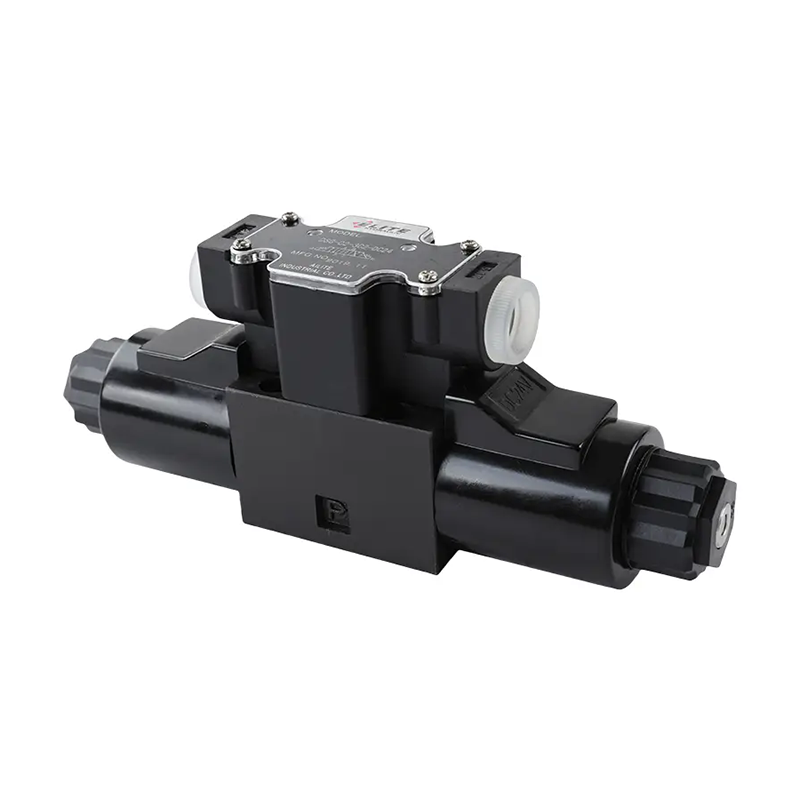

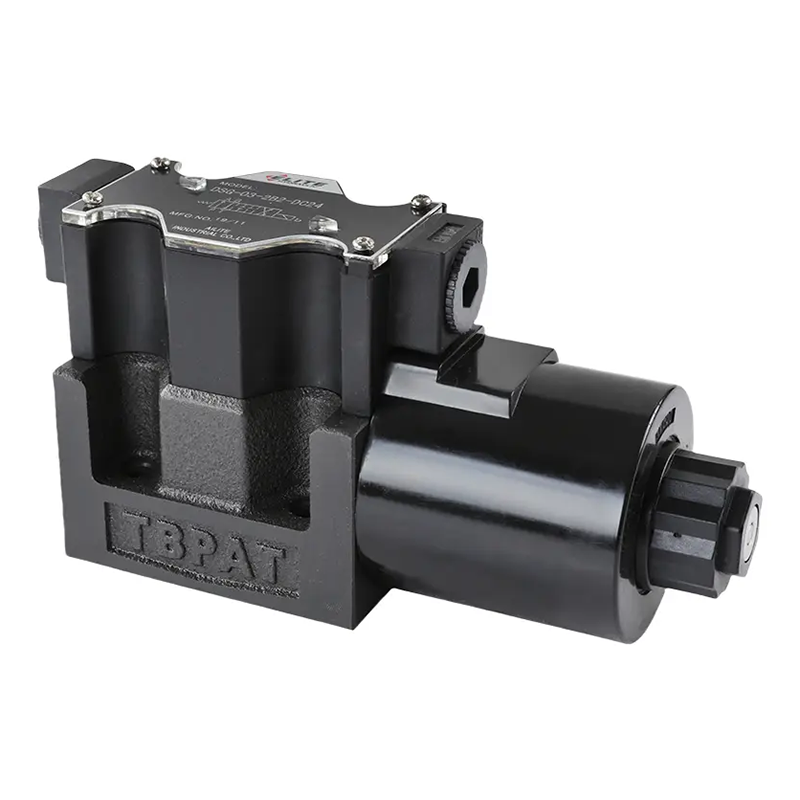

DSG series electromagnetic directional valve

Features
It adopts wet electromagnet and five-cavity valve body, and has the ability to withstand high pressure and back pressure.
The wet design ensures low sound, long life and fast switching.
After more than 10 million durability tests, quality stability is guaranteed.
It adopts high suction electromagnet and strong spring to ensure stable operation in polluted environment.
The mounting surface complies with international standards such as ISO, CETOP, and DIN.

Availability:

Quantity:



Inquire Add to Basket

Product details

DSG-03 solenoid directional valve

Type	Model	Maximum Flow Rate L/min	Maximum Working Pressure MPa	Allowable Back Pressure on Return Side MPa	Maximum Commutation Frequency Min	Mass (kg)
						Electromagnet Type
						AC	DC,R,RQ
Standard-Type Solenoid Directional Control Valve	DSG-03-3C--50	120	31.5/25	16	240/120	3.6	5
	DSG-03-2D2--50	120	31.5/25	16	240/120	3.6	5
	DSG-03-2B--50	120	31.5/25	16	240/120	2.9	3.6
Shockless Electromagnetic Directional Control Valve	S-DSG-03-3C--50	120	25	16	120	—	5
Shockless Electromagnetic Directional Control Valve	S-DSG-03-2B2--50	120	25	16	120	—	3.6

DSG-03 solenoid directional valve

type	model	Maximum flow rate L/min	Maximum working pressureMPa	Allowable back pressure on oil return side MPa	Maximum commutation frequency MIn	Mass kg
						Electromagnet type
						AC	DC,R,RQ
Standard solenoid directional valve	DSG-03-3C--50	120	31.5/25	16	240/120	3.6	5
	DSG-03-2D2--50	120	31.5/25	16	240/120	3.6	5
	DSG-03-2B--50	120	31.5/25	16	240/120	2.9	3.6
Impactless solenoid directional valve	S-DSG-03-3C--50	120	25	16	120	—	5
Impactless solenoid directional valve	S-DSG-03-2B2--50	120	25	16	120	—	3.6

Standard electromagnet parameters

type	power supply	coil mark	frequency (Hz)	Voltage(V)		Current and power at rated voltage
type	power supply	coil mark	frequency (Hz)	Rated power	Allowed range of variation	Starting current (A)	holding current (A)	power (W)
Standard type	comminicate	A100	50	100	80~110	5.37	0.90	——
				100	90~120	4.57	0.63
			60	110	90~120	5.03	0.77
			50	120	96~132	4.48	0.75
		A120	60	120	108~144	3.81	0.52
		A120	50	200	160~220	2.69	0.45
		A200	60	200	180~240	2.29	0.31
		A200	60	220	180~240	2.52	0.38
		A240	50	240	192~264	2.24	0.37
		A240	60	240	216~288	1.91	0.26
		D12		12	10.8~13.2		3.16
No impact type	DC (K series)	D24	——	24	21.6~26.4	—	1.57	38
	AC (AC/DC rectifier type)	D100		100	90~110		0.38	38
		R100	50/60	100	90~110	—	0.43	38
		R200	50/60	200	180~220	—	0.21	38
	AC (AC/DC rectifier fast return type)	RQ100	50/60	100	90~110	—	0.43	38
